Installation [08/2015 - 10/2016]: Procedure

See step  1

See step  1

1. Apply a light coat of gasoline to a new gasket and install it to the fuel tank.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

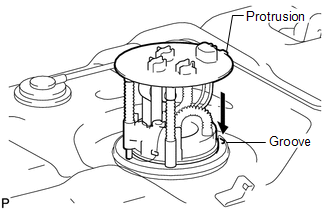

   Align the protrusion of the fuel suction with pump and gauge tube assembly with the groove of the fuel tank.

3. Install the fuel suction with pump and gauge tube assembly into the fuel tank.
   NOTE:

   Be careful not to bend the arm of the fuel sender gauge.

4. Put the retainer on the fuel tank. While holding the fuel suction with pump and gauge tube assembly, tighten the retainer one complete turn by hand.

5. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

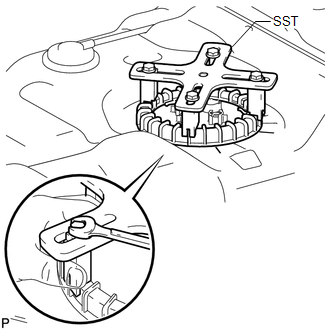

   Set SST on the retainer.

   • SST: 09808-14030

   HINT:

   • Hold the fuel suction tube assembly upright by hand to ensure that the fuel suction tube gasket is not moved out of position.
   • Securely attach the claws of SST to the protrusions of the retainer and fix SST in place.
   • Install SST while pressing the claws of SST against the retainer (toward the center of SST).

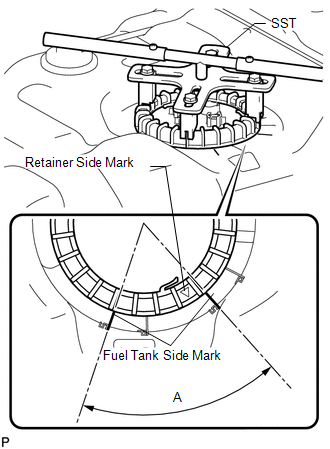

6. Using SST, tighten the retainer until the mark on the retainer is within range A on the fuel tank, as shown in the illustration.
   • SST: 09808-14030

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Fit the tips of SST onto the ribs of the retainer.

See step  2

1. Install the fuel tank assembly (Refer to INSTALLATION [08/2015 - 08/2018] ).
