Removal [08/2015 - 08/2018]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FUEL PUMP CONTROL ECU ASSEMBLY

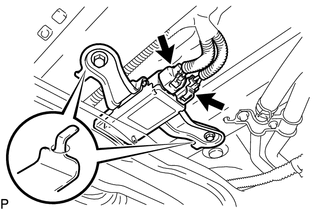

- Disconnect the 2 fuel pump control ECU connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

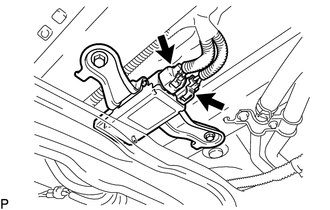

- Remove the 2 bolts and fuel pump control ECU assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Make sure that the fuel pump control ECU assembly is not subjected to physical shocks such as being dropped, etc.
