Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
    1. Remove the fuel suction with pump and gauge tube assembly (Refer to REMOVAL [08/2015 - 10/2016] , or refer to REMOVAL [10/2016 - 08/2018] ).
  2. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

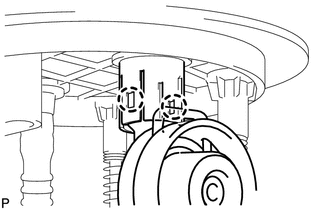

    1. GTY611147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a screwdriver, detach the 2 claws and remove the fuel pressure regulator.

      HINT:

      Tape the screwdriver tip before use.
