Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY

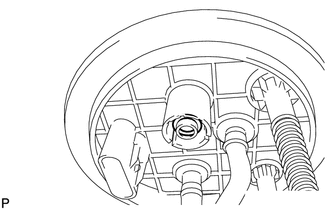

    1. GTY194893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Apply a light coat of gasoline or spindle oil to the O-ring.

    2. GTY611147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the 2 claws to install the fuel pressure regulator.

  2. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
    1. Install the fuel suction with pump and gauge tube assembly (Refer to INSTALLATION [08/2015 - 10/2016] , or refer to INSTALLATION [10/2016 - 08/2018] ).
