Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
    1. Apply a light coat of gasoline or spindle oil to a new O-ring and install it to the fuel pressure regulator.
      NOTE:
      • Make sure that there are no scratches or foreign matter in or around the hole of the delivery pipe.
      • When installing the fuel pressure regulator, be careful not to damage the O-ring.

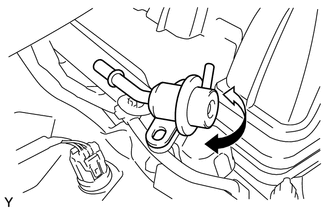

    2. While turning the pressure regulator left and right, install it to the fuel delivery pipe.
      GTY567258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

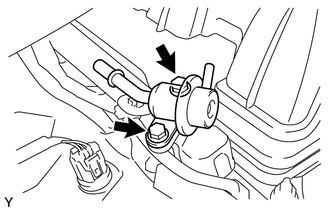

    3. Install the 2 bolts.
      GTY572057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

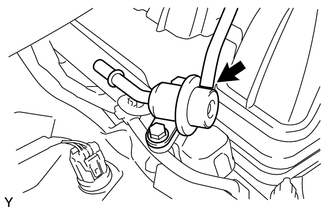

    4. Connect the vacuum sensing hose to the pressure regulator.
      GTY604976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 FUEL TUBE SUB-ASSEMBLY

    See step  9

  3. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 13

  4. INSPECT FOR FUEL LEAK

    See step  11

  5. INSTALL V-BANK COVER

    Refer to PROCEDURE - Step 16
