INSPECT STARTER ASSEMBLY

WARNING:

As a large electric current passes through the cable during this inspection, a thick cable must be used. Otherwise, the cable may become hot and cause injury.

NOTE:

These tests must be performed within 3 to 5 seconds to avoid burning out the coil.

Perform a pull-in test.

Remove the nut, and then disconnect the field coil lead wire from terminal C.

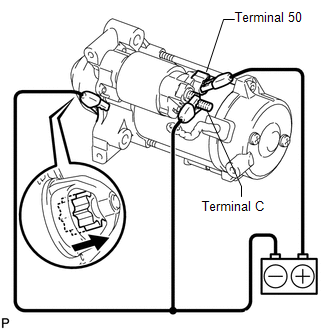

Connect the battery to the magnet starter switch as shown in the illustration. Then check that the clutch pinion gear moves outward.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the clutch pinion gear does not move outward, replace the magnet starter switch assembly.

Perform a holding test.

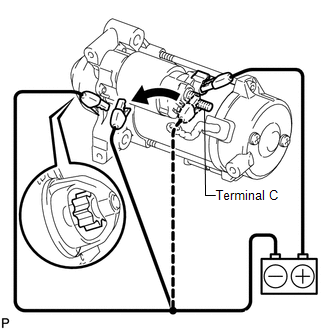

When the battery is connected as above with the clutch pinion gear out, disconnect the negative (-) lead from terminal C. Check that the pinion gear remains out.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the clutch pinion gear moves inward, replace the magnet starter switch assembly.

Inspect the clutch pinion gear return.

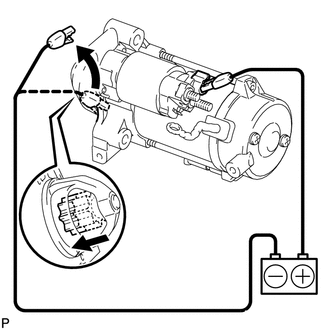

Disconnect the negative (-) lead from the starter body. Check that the clutch pinion gear returns inward.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the clutch pinion gear does not return inward, replace the magnet starter switch assembly.

Perform an operation test without load.

Connect the field coil lead wire to terminal C with the nut.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
Mount the starter in a vise between aluminum plates.

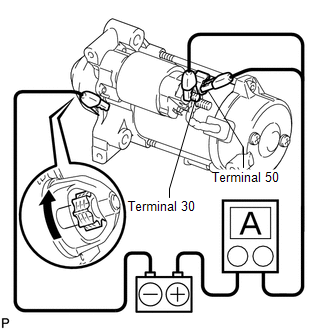

Connect the battery and an ammeter to the starter as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check that the starter rotates smoothly and steadily while the pinion gear is moving outward. Then measure the current.
Standard current

150 A or less at 11.5 V

If the result is not as specified, replace the starter assembly.

INSPECT MAGNET STARTER SWITCH ASSEMBLY

Check if the pull-in coil has an open circuit.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
Terminal 50 - Terminal C	Always	Below 1 Ω

If the result is not as specified, replace the magnet starter switch assembly.

Check if the holding coil has an open circuit.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
Terminal 50 - Switch body	Always	Below 2 Ω

If the result is not as specified, replace the magnet starter switch assembly.

INSPECT STARTER ARMATURE ASSEMBLY

Check the surface of the commutator for dirt and burns.
If the surface is dirty or burnt, correct it with sandpaper (No. 400) or a lathe.

If necessary, replace the starter armature assembly.

Inspect the commutator for an open circuit.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
Segment - Segment	Always	Below 1 Ω

If the result is not as specified, replace the starter armature assembly.

Inspect the commutator for a short circuit.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
Segment - Coil core	Always	10 kΩ or higher

If the result is not as specified, replace the starter armature assembly.

Check the commutator circle runout.

Place the armature shaft on V-blocks.

Using a dial indicator, measure the circle runout.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum runout

0.05 mm (0.00197 in.)

If the circle runout is more than the maximum, replace the starter armature assembly.

Using a vernier caliper, measure the commutator diameter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard diameter

29.0 mm (1.14 in.)

Minimum diameter

28.0 mm (1.10 in.)

HINT:

Be sure to measure the commutator diameter at the ridges.

If the diameter is less than the minimum, replace the starter armature assembly.

Check that the undercut portion is clean and free of foreign matter. Smooth out the edge.

Standard undercut depth

0.4 mm (0.0157 in.)

Minimum undercut depth

0.2 mm (0.00787 in.)

HINT:

Be sure to measure the commutator undercut depth at a cutout.

If the undercut depth is less than the minimum, increase the depth using a hacksaw blade.

INSPECT STARTER BRUSH HOLDER ASSEMBLY

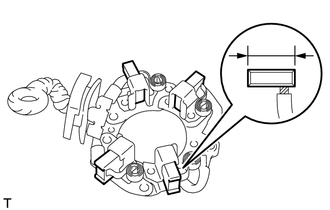

Using a vernier caliper, measure the brush length.

Standard length

14.4 mm (0.567 in.)

Minimum length

9.0 mm (0.354 in.)

HINT:

Be sure to measure the brush lengths at the protrusions.

If the length is less than the minimum, replace the starter brush holder assembly.

Inspect the load of the brush spring.

Take a pull scale reading immediately after the brush spring separates from the brush.

Standard spring load

22 to 27 N (2 to 3 kgf, 5.0 to 6.1 lbf)

Minimum spring load

14 N (1 kgf, 3.1 lbf)

If the load is less than the minimum, replace the starter brush holder assembly.

INSPECT STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY

Check the gear teeth on the planetary gears, and the internal gear and pinion gear of the starter center bearing clutch for wear or damage.
If any of the gears is damaged, replace the gear or starter center bearing clutch sub-assembly.

Hold the starter clutch, rotate the pinion gear clockwise and check that it turns freely. Try to rotate the pinion gear counterclockwise and check that it locks.

If the result is not as specified, replace the starter center bearing clutch sub-assembly.
