Disassembly [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MAGNET STARTER SWITCH ASSEMBLY
    1. Remove the nut and disconnect the lead wire from the magnet starter switch.
      GTY348889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts from the starter drive housing while holding the magnet starter switch.
      GTY348888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the magnet starter switch and while lifting the front part of the magnet starter switch, release the plunger hook from the drive lever and remove the magnet starter switch.
      GTY351659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STARTER YOKE ASSEMBLY
    1. Using a T25 "TORX" socket wrench, remove the 2 bolts.
      GTY358196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the starter yoke together with the starter commutator end frame.
    3. Remove the 2 screws and starter commutator end frame from the starter yoke.
      GTY351538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      While holding down the lead wire, remove the starter commutator end frame.

  3. REMOVE STARTER BRUSH HOLDER ASSEMBLY

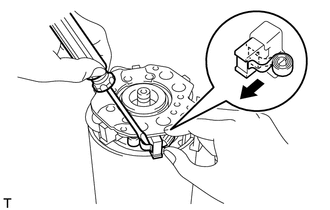

    1. Using a screwdriver, pry the end of the spring away from each brush and pull out the 4 brushes from the brush holder so that they are held in place by the springs.
      GTY171712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the starter brush holder.
  4. REMOVE STARTER ARMATURE ASSEMBLY
    1. Remove the starter armature from the starter yoke.
      GTY358075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY
    1. Remove the starter armature plate from the starter center bearing clutch or starter yoke.
      GTY348898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 planetary gears from the starter center bearing clutch.
      GTY348897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

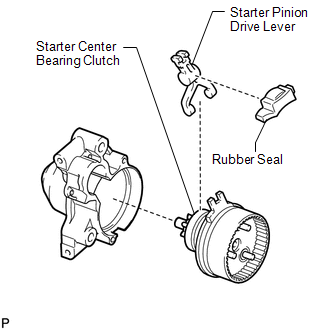

    3. Remove the starter center bearing clutch together with the starter pinion drive lever and rubber seal from the starter drive housing.
      GTY610491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the starter pinion drive lever and rubber seal from the starter center bearing clutch.
