DTC P2610: ECM / PCM Internal Engine Off Timer Performance [08/2017 - 08/2018]: Description

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

The soak timer operates after the ignition switch is turned off. When a certain amount of time has elapsed after turning the ignition switch off, the soak timer activates the ECM to perform malfunction checks which can only be performed after the engine is stopped. The soak timer is built into the ECM.

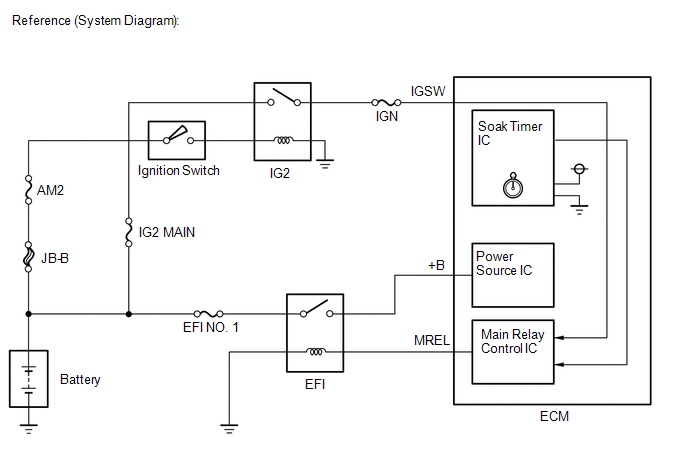

GTY772503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
