DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High [08/2015 - 08/2017]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

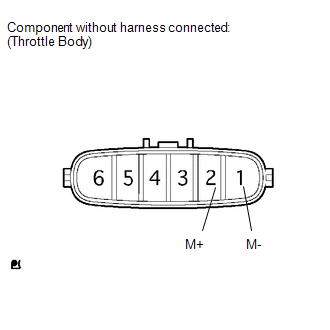

1. Disconnect the D4 throttle body assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   2 (M+) - 1 (M-)	20°C (68°F)	0.3 to 100 Ω

   HINT:

   Perform "Inspection After Repair" after replacing the throttle body (Refer to INITIALIZATION [08/2015 - 08/2017] ).

Result:

NG

REPLACE THROTTLE BODY ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2018] )

Result:

OK

See step  2

1. Disconnect the D4 throttle body assembly connector.
2. Disconnect the D56 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   D4-2 (M+) - D56-19 (M+)	Always	Below 1 Ω
   D4-1 (M-) - D56-18 (M-)	Always	Below 1 Ω
   D4-2 (M+) or D56-19 (M+) - Body ground	Always	10 kΩ or higher
   D4-1 (M-) or D56-18 (M-) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Check for foreign objects between the throttle valve and the housing.

   OK

   No foreign objects between throttle valve and housing.

   HINT:

   Perform "Inspection After Repair" after cleaning the throttle body (Refer to INITIALIZATION [08/2015 - 08/2017] ).

Result:

NG

REMOVE FOREIGN OBJECT AND CLEAN THROTTLE BODY ASSEMBLY

Result:

OK

See step  4

1. Check if the throttle valve opens and closes smoothly.

   OK

   Throttle valve opens and closes smoothly.

   HINT:

   Perform "Inspection After Repair" after replacing the throttle body (Refer to INITIALIZATION [08/2015 - 08/2017] ).

Result:

OK

REPLACE ECM

(Refer to REMOVAL [08/2015 - 08/2018] )

Result:

NG

REPLACE THROTTLE BODY ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2018] )
