DTC P0351: Ignition Coil "A" Primary / Secondary Circuit; DTC P0352: Ignition Coil "B" Primary / Secondary Circuit; DTC P0353: Ignition Coil "C" Primary / Secondary Circuit; DTC P0354: Ignition Coil "D" Primary / Secondary Circuit; DTC P0355: Ignition Coil "E" Primary / Secondary Circuit; DTC P0356: Ignition Coil "F" Primary / Secondary Circuit; DTC P0357: Ignition Coil "G" Primary / Secondary Circuit; DTC P0358: Ignition Coil "H" Primary / Secondary Circuit [08/2015 - 08/2017]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT IGNITION COIL (POWER SOURCE)

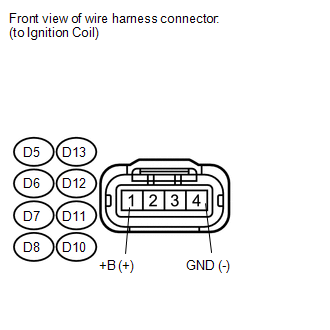

    GTY572114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the D5, D6, D7, D8, D10, D11, D12 or D13 ignition coil connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      D5-4 (GND) - Body ground Always Below 1 Ω
      D13-4 (GND) - Body ground Always Below 1 Ω
      D6-4 (GND) - Body ground Always Below 1 Ω
      D12-4 (GND) - Body ground Always Below 1 Ω
      D7-4 (GND) - Body ground Always Below 1 Ω
      D11-4 (GND) - Body ground Always Below 1 Ω
      D8-4 (GND) - Body ground Always Below 1 Ω
      D10-4 (GND) - Body ground Always Below 1 Ω
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      D5-1 (+B) - D5-4 (GND) Ignition switch ON 11 to 14 V
      D13-1 (+B) - D13-4 (GND) Ignition switch ON 11 to 14 V
      D6-1 (+B) - D6-4 (GND) Ignition switch ON 11 to 14 V
      D12-1 (+B) - D12-4 (GND) Ignition switch ON 11 to 14 V
      D7-1 (+B) - D7-4 (GND) Ignition switch ON 11 to 14 V
      D11-1 (+B) - D11-4 (GND) Ignition switch ON 11 to 14 V
      D8-1 (+B) - D8-4 (GND) Ignition switch ON 11 to 14 V
      D10-1 (+B) - D10-4 (GND) Ignition switch ON 11 to 14 V

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (IGNITION COIL - ECM)
    1. Disconnect the D5, D6, D7, D8, D10, D11, D12 or D13 ignition coil connector.
    2. Disconnect the D56 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      D5-2 (IGF1) - D56-104 (IGF1) Always Below 1 Ω
      D13-2 (IGF2) - D56-105 (IGF2) Always Below 1 Ω
      D6-2 (IGF2) - D56-105 (IGF2) Always Below 1 Ω
      D12-2 (IGF1) - D56-104 (IGF1) Always Below 1 Ω
      D7-2 (IGF2) - D56-105 (IGF2) Always Below 1 Ω
      D11-2 (IGF1) - D56-104 (IGF1) Always Below 1 Ω
      D8-2 (IGF1) - D56-104 (IGF1) Always Below 1 Ω
      D10-2 (IGF2) - D56-105 (IGF2) Always Below 1 Ω
      D5-3 (IGT1) - D56-40 (IGT1) Always Below 1 Ω
      D13-3 (IGT2) - D56-33 (IGT2) Always Below 1 Ω
      D6-3 (IGT3) - D56-37 (IGT3) Always Below 1 Ω
      D12-3 (IGT4) - D56-34 (IGT4) Always Below 1 Ω
      D7-3 (IGT5) - D56-35 (IGT5) Always Below 1 Ω
      D11-3 (IGT6) - D56-36 (IGT6) Always Below 1 Ω
      D8-3 (IGT7) - D56-38 (IGT7) Always Below 1 Ω
      D10-3 (IGT8) - D56-39 (IGT8) Always Below 1 Ω
      D5-2 (IGF1) or D56-104 (IGF1) - Body ground Always 10 kΩ or higher
      D13-2 (IGF2) or D56-105 (IGF2) - Body ground Always 10 kΩ or higher
      D6-2 (IGF2) or D56-105 (IGF2) - Body ground Always 10 kΩ or higher
      D12-2 (IGF1) or D56-104 (IGF1) - Body ground Always 10 kΩ or higher
      D7-2 (IGF2) or D56-105 (IGF2) - Body ground Always 10 kΩ or higher
      D11-2 (IGF1) or D56-104 (IGF1) - Body ground Always 10 kΩ or higher
      D8-2 (IGF1) or D56-104 (IGF1) - Body ground Always 10 kΩ or higher
      D10-2 (IGF2) or D56-105 (IGF2) - Body ground Always 10 kΩ or higher
      D5-3 (IGT1) or D56-40 (IGT1) - Body ground Always 10 kΩ or higher
      D13-3 (IGT2) or D56-33 (IGT2) - Body ground Always 10 kΩ or higher
      D6-3 (IGT3) or D56-37 (IGT3) - Body ground Always 10 kΩ or higher
      D12-3 (IGT4) or D56-34 (IGT4) - Body ground Always 10 kΩ or higher
      D7-3 (IGT5) or D56-35 (IGT5) - Body ground Always 10 kΩ or higher
      D11-3 (IGT6) or D56-36 (IGT6) - Body ground Always 10 kΩ or higher
      D8-3 (IGT7) or D56-38 (IGT7) - Body ground Always 10 kΩ or higher
      D10-3 (IGT8) or D56-39 (IGT8) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK WHETHER DTC OUTPUT RECURS (DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357 OR P0358)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON and turn the Techstream on.
    3. Clear DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2018] ).
    4. Shuffle the arrangement of the ignition coil (among No. 1 to No. 8 cylinders).
      NOTE:

      Do not shuffle the connectors.

    5. Perform a simulation test.
    6. Check DTCs displayed on the Techstream.
      RESULT

      Result Proceed to
      Same DTC is output A
      Different ignition coil DTC is output B

      HINT:

      Perform "Inspection After Repair" after replacing the ignition coil assembly (Refer to INITIALIZATION [08/2015 - 08/2017] ).

    Result:

    A

    REPLACE ECM

    (Refer to REMOVAL [08/2015 - 08/2018] )

    Result:

    B

    REPLACE IGNITION COIL

    (Refer to REMOVAL [08/2015 - 08/2018] )
