Monitor Description

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

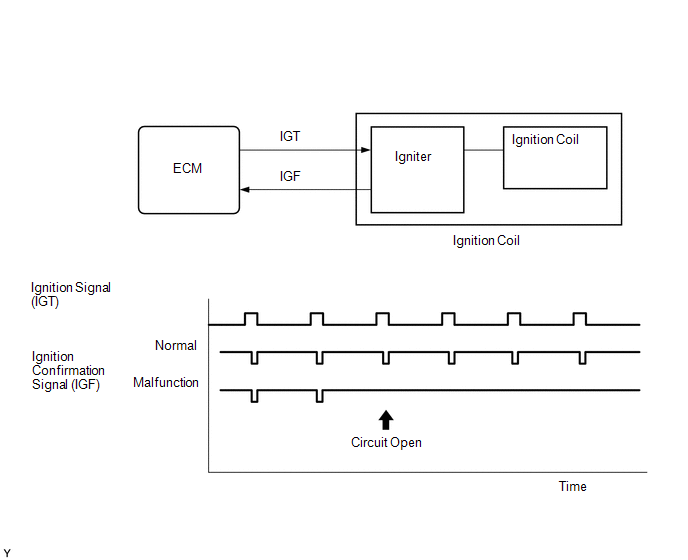

GTY365887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the ECM does not receive any IGF signals despite transmitting the IGT signal, it interprets this as a fault in the igniter and stores a DTC.

If the malfunction is not repaired successfully, a DTC is stored 1 second after the engine is next started.
