DTC P0300: Random / Multiple Cylinder Misfire Detected; DTC P0301: Cylinder 1 Misfire Detected; DTC P0302: Cylinder 2 Misfire Detected; DTC P0303: Cylinder 3 Misfire Detected; DTC P0304: Cylinder 4 Misfire Detected; DTC P0305: Cylinder 5 Misfire Detected; DTC P0306: Cylinder 6 Misfire Detected; DTC P0307: Cylinder 7 Misfire Detected; DTC P0308: Cylinder 8 Misfire Detected [08/2017 - 08/2018]: Wiring Diagram

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
GTY750420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

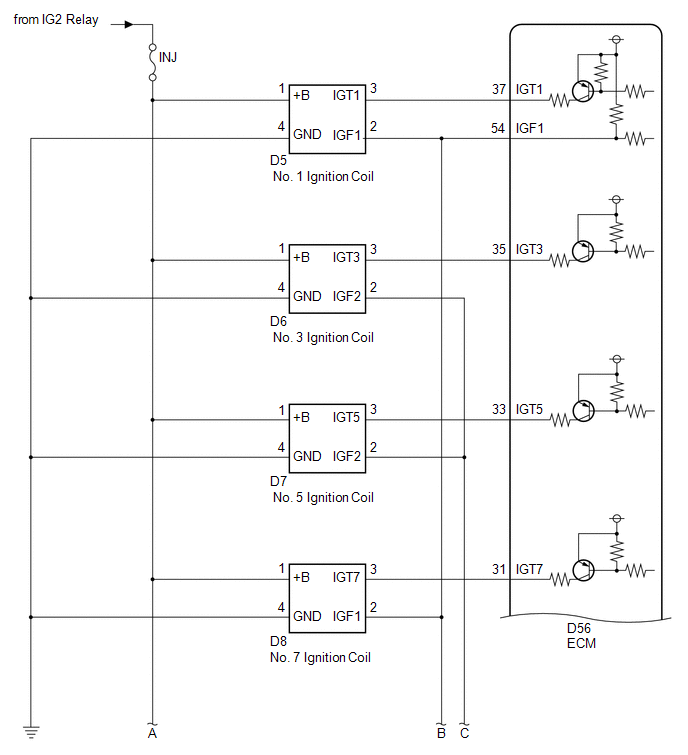

GTY749311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

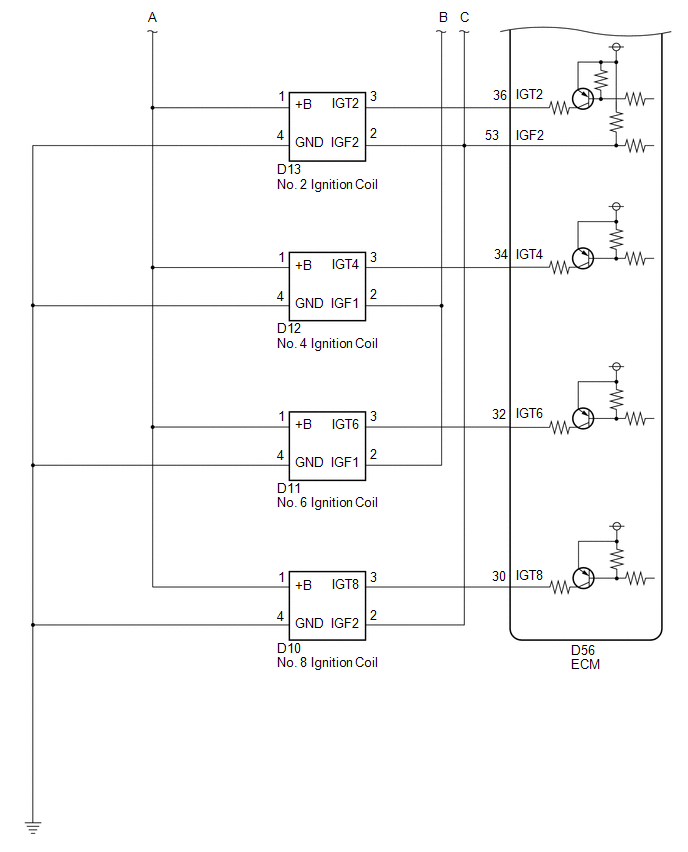

GTY747434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
