System Diagram [08/2015 - 08/2018]

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. FUEL FLOW DIAGRAM

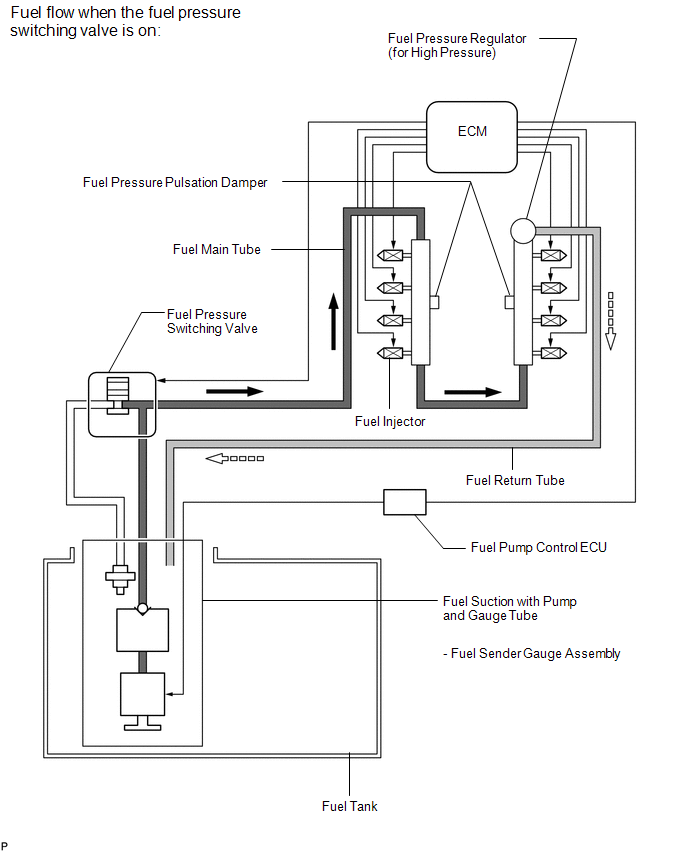

    GTY579886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

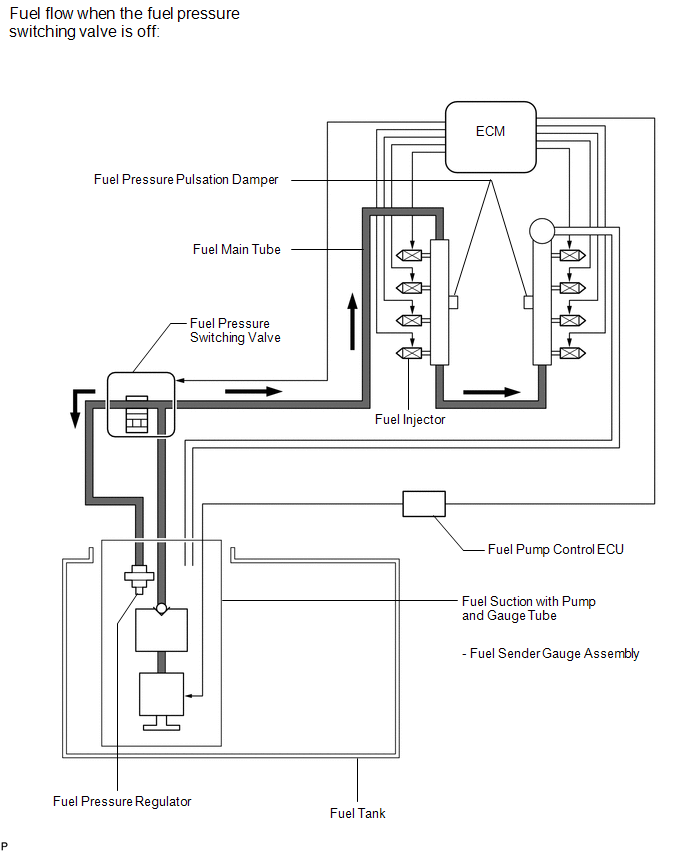

    GTY575092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL CONTROL DIAGRAM

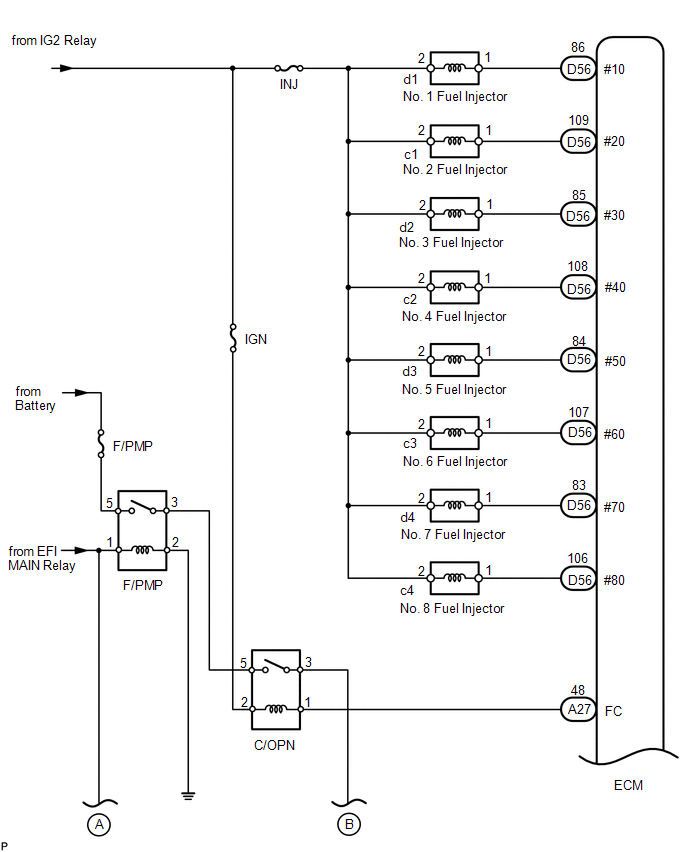

    GTY595951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

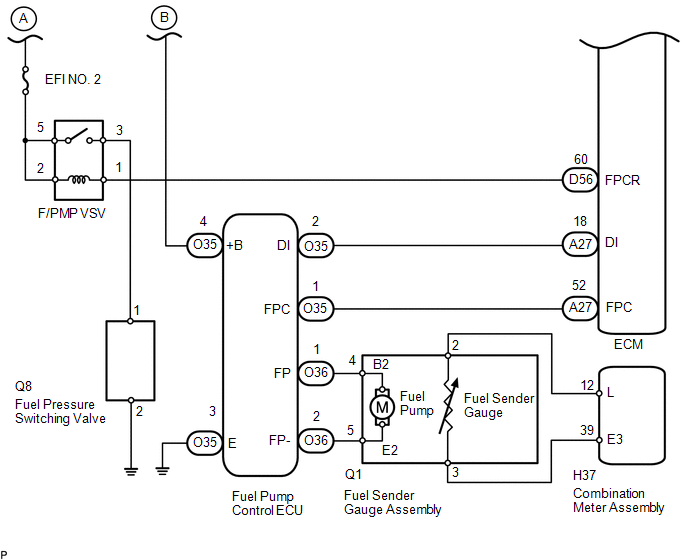

    GTY608870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
