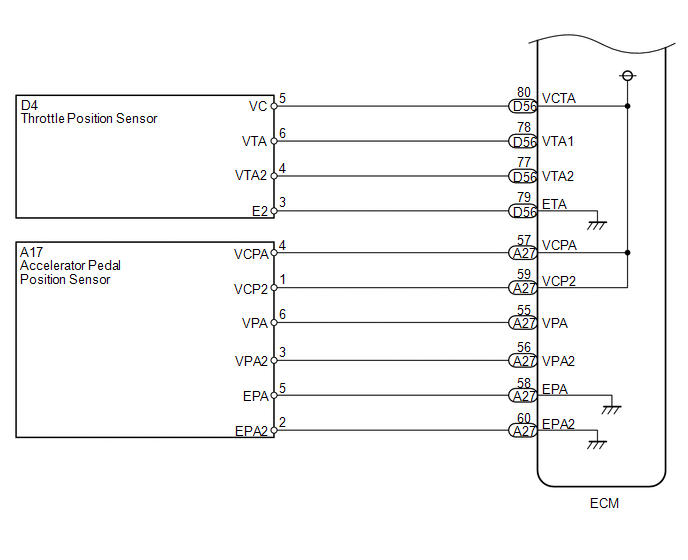

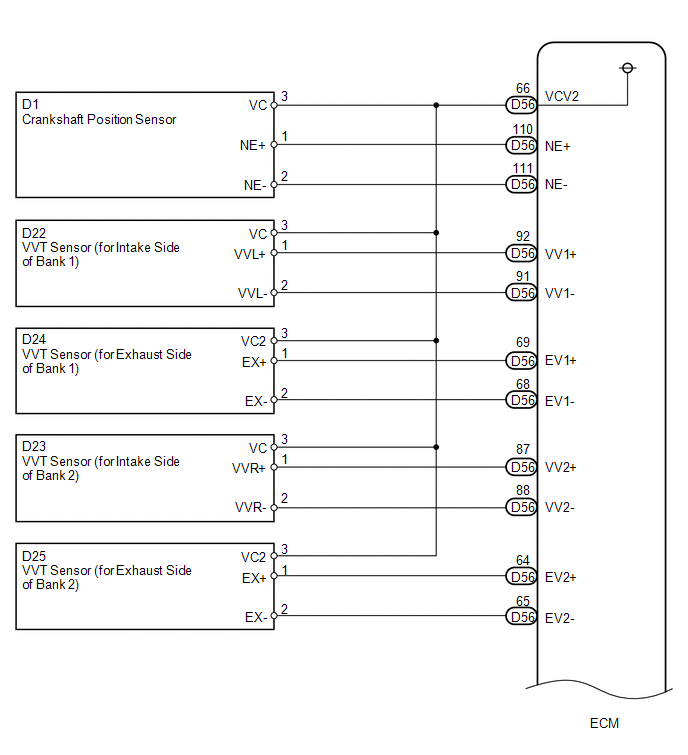

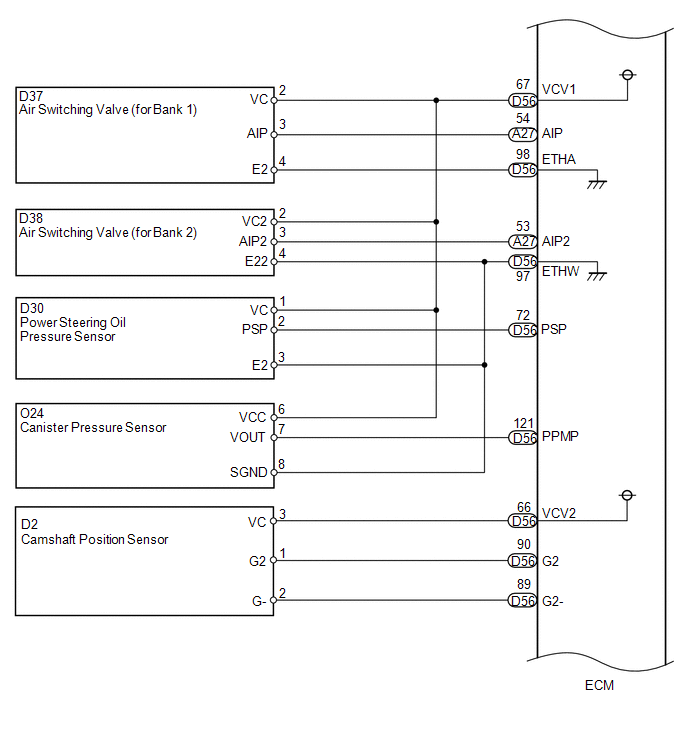

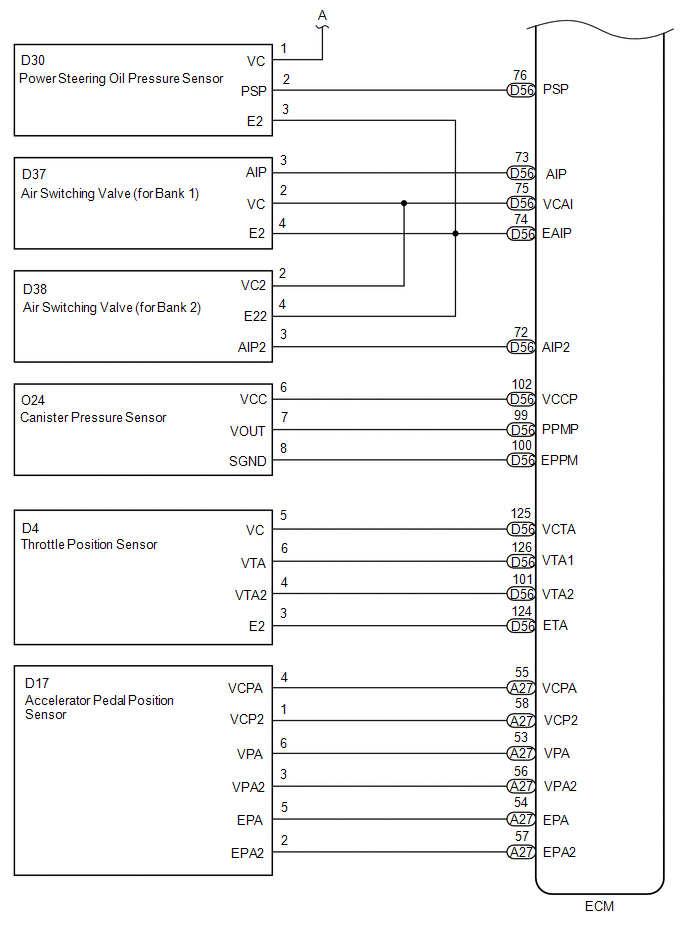

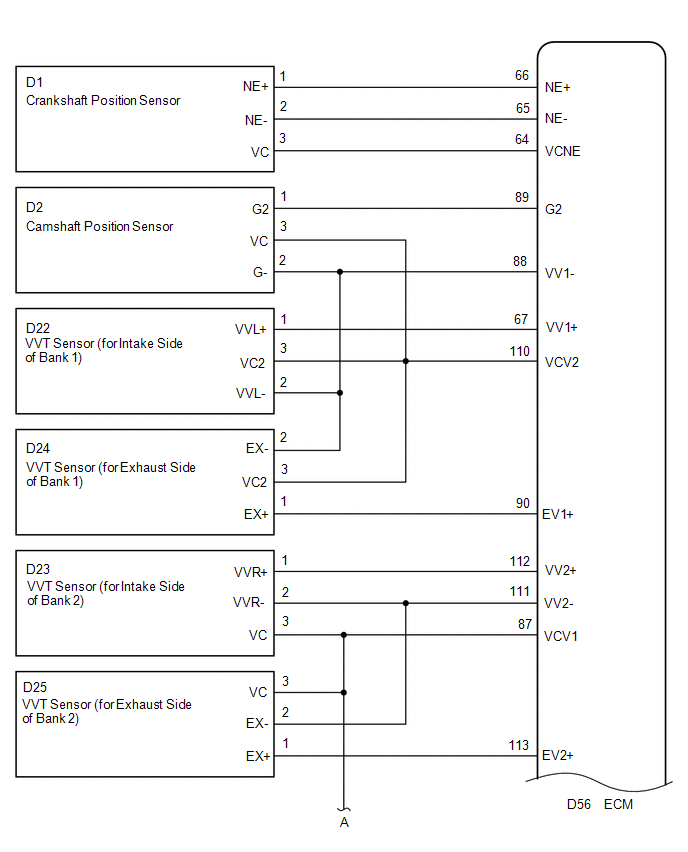

VC Output Circuit [08/2015 - 08/2017]: Wiring Diagram

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For the circuit diagram of the ECM power source circuit.
Refer to ECM Power Source Circuit [08/2017 - 08/2018]
VC Power Source Circuit
