EVAP System [08/2015 - 08/2017]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONFIRM DTC
    1. Turn the ignition switch off and wait for 10 seconds.
    2. Turn the ignition switch to ON.
    3. Turn the ignition switch off and wait for 10 seconds.
    4. Connect the Techstream to the DLC3.
    5. Turn the ignition switch to ON and turn the Techstream ON.
    6. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    7. Confirm DTCs and freeze frame data.

      If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

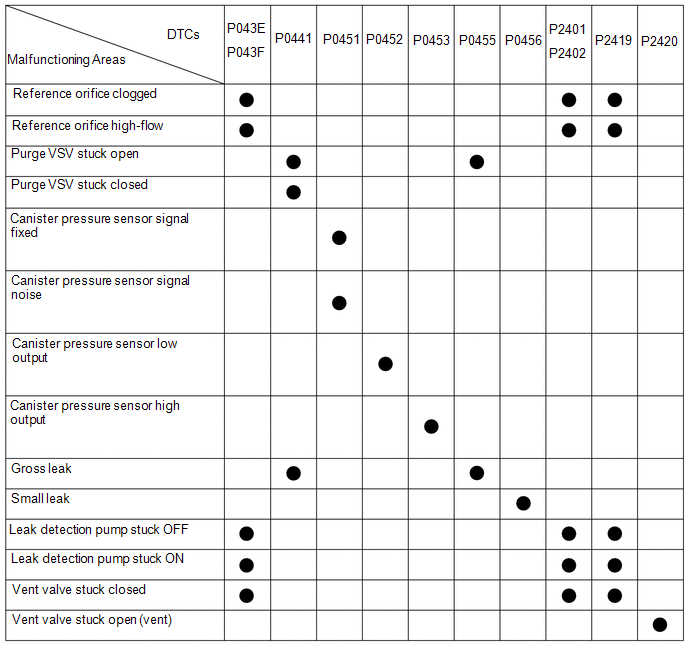

      GTY573990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the reference pressure difference between the first and second checks is greater than the specification, all the DTCs relating to the reference pressure (P043E, P043F, P2401, P2402 and P2419) are stored.

    Result:

    NEXT

    See step  2

  2. PERFORM EVAP SYSTEM CHECK (AUTO OPERATION)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of 6 steps performed automatically by the Techstream. It takes a maximum of approximately 24 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed. If the cut-off valve is closed, the fuel tank leak check is not possible.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2018] ).
    2. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
    3. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.

      HINT:

      If no pending DTCs are displayed, perform the MONITOR CONFIRMATION (see "Diagnostic Help" menu). After this confirmation, check for pending DTCs. If no DTCs are displayed, the EVAP system is normal.

    Result:

    NEXT

    See step  3

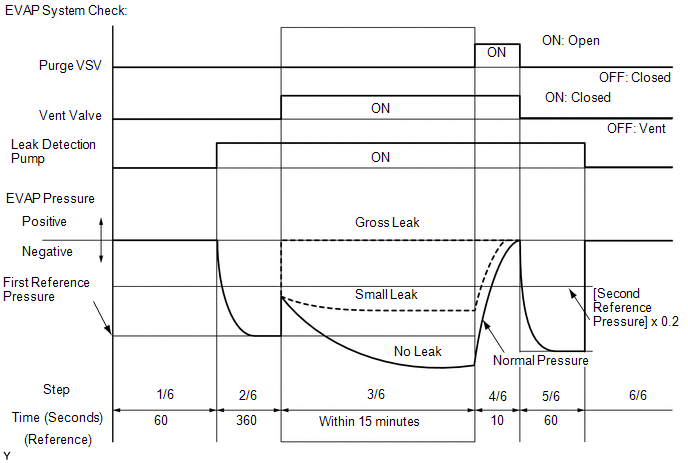

  3. PERFORM EVAP SYSTEM CHECK (MANUAL OPERATION)
    GTY557824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • In the Evaporative System Check (Manual Mode), perform the series of 6 Evaporative System Check steps manually using the Techstream.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed. If the cut-off valve is closed, the fuel tank leak check is not possible.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2018] ).
    2. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Manual Mode.

    Result:

    NEXT

    See step  4

  4. PERFORM EVAP SYSTEM CHECK (STEP 1/6)

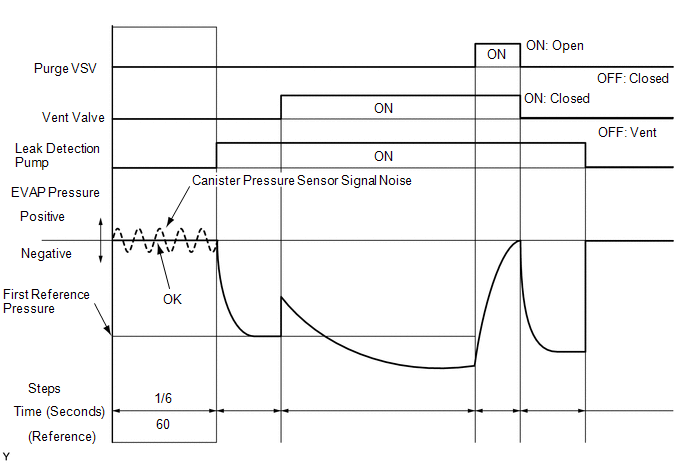

    GTY604086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 1/6.
      RESULT

      DTCs*1 Test Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure Not yet determined A
      P0451 EVAP pressure fluctuates by +/-0.3 kPa-g (+/-2.25 mmHg-g) or more Canister pressure sensor noise B
      (P0452 or P0453)*2
      • EVAP pressure is below 42.11009 kPa (abs) [315.86779 mmHg (abs)] or 123.76147 kPa (abs) [928.33489 mmHg (abs)] or more
      • EVAP pressure deviates +/-10 kPa [+/-75 mmHg] from actual atmosphere pressure*3
      		 Canister pressure sensor or its circuit has malfunction C
      • *1: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.
      • *2: If the canister pressure sensor circuit has an open or short, DTC P0452 or P0453 is stored 0.5 seconds after the ignition switch is turned to ON.

      HINT:

      *3: Canister pressure sensor standard output range is 70 to 111 kPa (abs) [525 to 833 mmHg (abs)]. This varies by weather.

    Result:

    B

    See step  38

    Result:

    C

    See step  12

    Result:

    A

    See step  5

  5. PERFORM EVAP SYSTEM CHECK (STEP 1/6 TO 2/6)

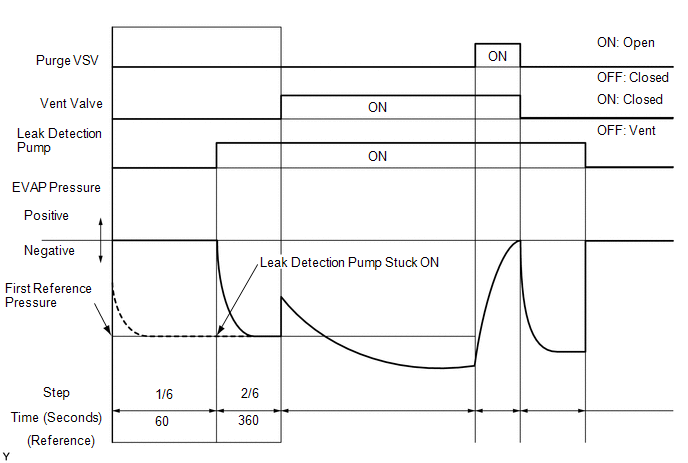

    GTY581261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in steps 1/6 and 2/6.
      RESULT

      DTCs* Test Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure during step 1/6. Then decreases to reference pressure Not yet determined A
      P2402 Small difference between EVAP pressures during steps 1/6 and 2/6 Leak detection pump stuck ON B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

      HINT:

      The first reference pressure is the value determined in step 2/6.

    Result:

    B

    See step  33

    Result:

    A

    See step  6

  6. PERFORM EVAP SYSTEM CHECK (STEP 2/6)

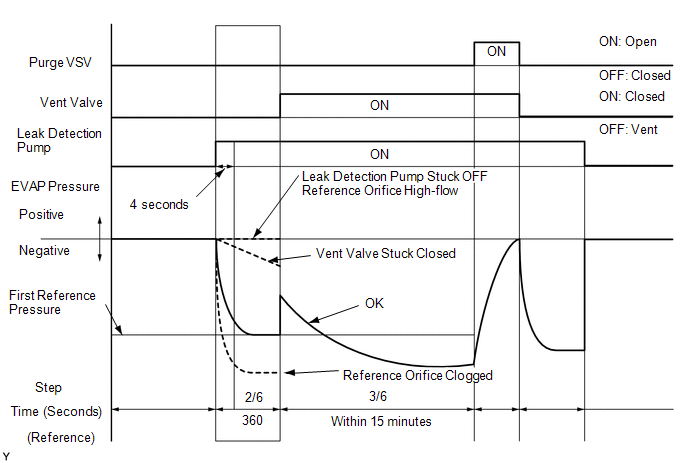

    GTY610627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Make a note of the pressures checked in steps (a) and (b) below.

    1. (a) Check the EVAP pressure 4 seconds after the leak detection pump is activated*.

      *: The leak detection pump begins to operate as step 1/6 finishes and step 2/6 starts.

    2. (b) Check the EVAP pressure again when it has stabilized. This pressure is the reference pressure.
      RESULT

      DTCs* Test Result Suspected Trouble Area Proceed to
      - EVAP pressure in step (b) between -4.85 kPa-g and -1.057 kPa-g (-36.4 mmHg-g and -7.93 mmHg-g) Not yet determined A
      P043F and P2401 EVAP pressure in step (b) -1.057 kPa-g (-7.93 mmHg-g) or more
      • Reference orifice high-flow
      • Leak detection pump stuck OFF
      		 B
      P043E EVAP pressure in step (b) below -4.85 kPa-g (-36.4 mmHg-g) Reference orifice clogged C
      P2419 EVAP pressure in step (a) more than -1.057 kPa-g (-7.93 mmHg-g) Vent valve stuck closed D

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    Result:

    B

    See step  11

    Result:

    C

    See step  38

    Result:

    D

    See step  13

    Result:

    A

    See step  7

  7. PERFORM EVAP SYSTEM CHECK (STEP 2/6 TO 3/6)

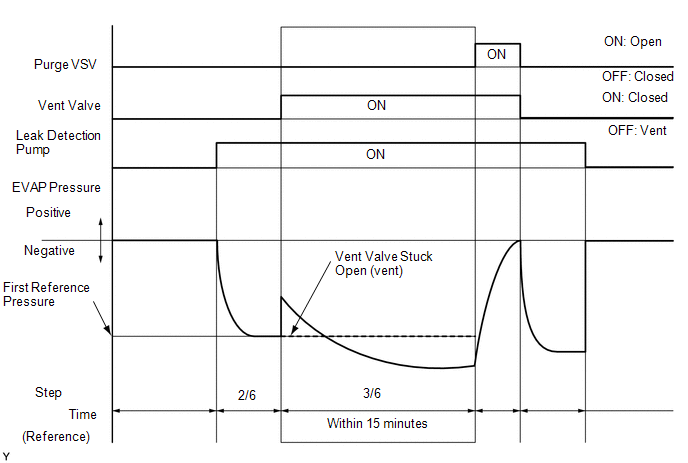

    GTY522138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure increase in step 3/6.
      RESULT

      DTCs* Test Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 2/6 to step 3/6 Not yet determined A
      P2420 No variation in EVAP pressure despite proceeding from step 2/6 to step 3/6 Vent valve stuck open (vent) B
      P0451 No variation in EVAP pressure during steps 1/6 through 3/6 Canister pressure sensor output value stuck C

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    Result:

    B

    See step  27

    Result:

    C

    See step  15

    Result:

    A

    See step  8

  8. PERFORM EVAP SYSTEM CHECK (STEP 3/6)

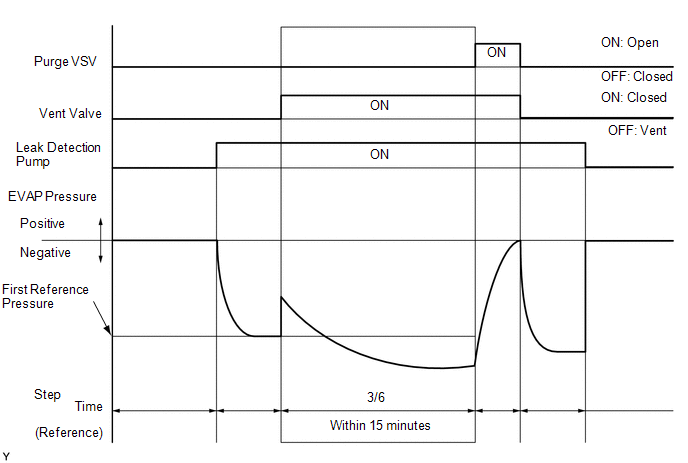

    GTY524699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Wait until the EVAP pressure change is less than 0.12 kPa-g (0.9 mmHg-g) for 60 seconds.
    2. Measure the EVAP pressure and record it.

      HINT:

      A few minutes are required for the EVAP pressure to become saturated. When there is little fuel in the fuel tank, it takes up to 15 minutes.

    Result:

    NEXT

    See step  9

  9. PERFORM EVAP SYSTEM CHECK (STEP 4/6)

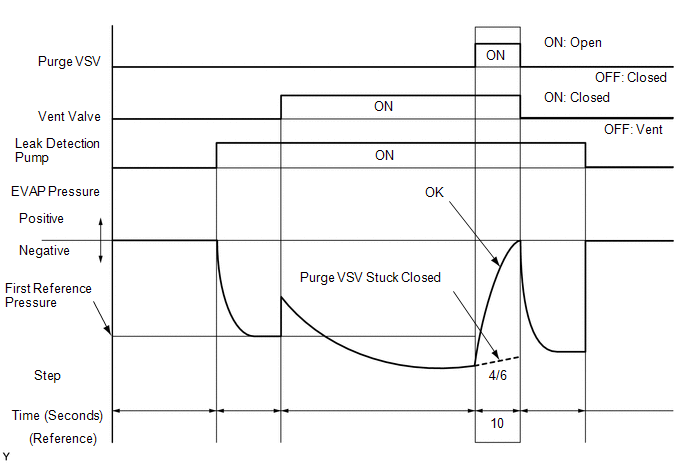

    GTY530228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 4/6.
      RESULT

      DTCs*1 Test Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/6 to step 4/6 Not yet determined A
      P0441*2 EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/6 to step 4/6 Problems in purge line between purge VSV and intake manifold B
      P0441 Variation in EVAP pressure less than 0.3 kPa-g (2.25 mmHg-g) for 10 seconds, after proceeding from step 3/6 to step 4/6 Purge VSV stuck closed C
      • *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.
      • *2: This result suggests that due to purge line blockage or purge VSV malfunction, the DTC was stored by the purge flow monitor while the engine was running, or that key-off monitor test result were nearly borderline values.

    Result:

    B

    See step  22

    Result:

    C

    See step  17

    Result:

    A

    See step  10

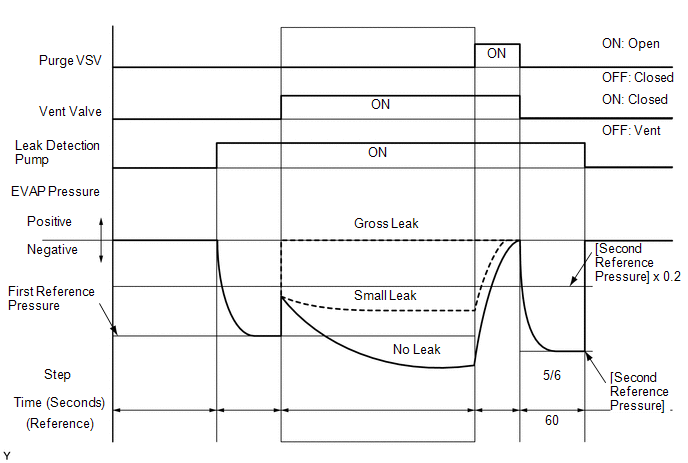

  10. PERFORM EVAP SYSTEM CHECK (STEP 5/6)
    GTY570429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 5/6.
    2. Compare the EVAP pressure in step 3/6 and the second reference pressure (step 5/6).
      RESULT

      DTCs* Test Result Suspected Trouble Area Proceed to
      - EVAP pressure (step 3/6) lower than second reference pressure (step 5/6) Not yet determined (no leakage from EVAP system) A
      P0441 and P0455 EVAP pressure (step 3/6) higher than [second reference pressure (step 5/6) x 0.2]
      • Purge VSV stuck open
      • EVAP gross leak
      		 B
      P0456 EVAP pressure (step 3/6) higher than second reference pressure (step 5/6) EVAP small leak B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    Result:

    A

    See step  43

    Result:

    B

    See step  17

  11. PERFORM EVAP SYSTEM CHECK (STEP 3/6)

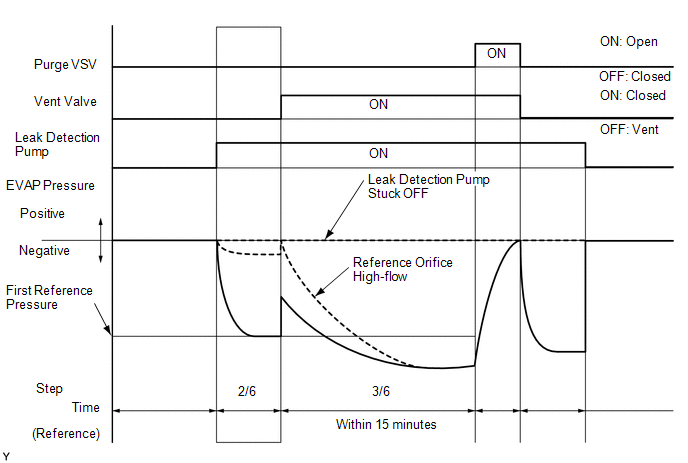

    GTY530927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 3/6.
      RESULT

      DTCs* Test Result Suspected Trouble Area Proceed to
      P043F EVAP pressure less than [reference pressure] measured at 2/6 Reference orifice high-flow A
      P2401 EVAP pressure almost same as [reference pressure] measured at 2/6 Leak detection pump stuck OFF B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

      HINT:

      The first reference pressure is the value determined in step 2/6.

    Result:

    A

    See step  38

    Result:

    B

    See step  31

  12. INSPECT CANISTER PUMP MODULE (CANISTER PRESSURE SENSOR CIRCUIT)
    1. Check the canister pressure sensor circuit, referring to DTC P0451 canister pressure sensor circuit inspection procedure (Refer to CAUTION / NOTICE / HINT ).

    Result:

    NEXT

    See step  49

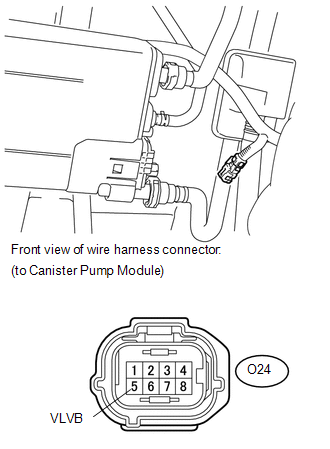

  13. INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)
    GTY543797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Apply the battery voltage to 5 (VLVB) and 1 (VGND) terminals of the canister pump module.
    4. Touch the canister pump module to confirm the vent valve operation.
      RESULT

      Test Result Suspected Trouble Area Proceed to
      Operating 1. Wire harness between vent valve and ECM
      2. ECM      		 A
      Not operating Vent valve B

    Result:

    B

    See step  38

    Result:

    A

    See step  14

  14. CHECK HARNESS AND CONNECTOR (ECM - CANISTER PUMP MODULE)
    1. Disconnect the A27 ECM connector.
    2. Disconnect the O24 canister pump module connector.
    3. Measure the resistance according to the value(s) in the table below.
      RESULT

      Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
      A27-30 (VPMP) - O24-1 (VGND) Always Below 1 Ω ECM A
      Always 10 kΩ or higher Wire harness between ECM and canister pump module B

    Result:

    B

    See step  40

    Result:

    A

    See step  15

  15. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - BODY GROUND)
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Measure the resistance according to the value(s) in the table below.
      RESULT

      Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
      O24-4 (MGND) - Body ground Always Below 1 Ω Leak detection pump A
      Always 10 kΩ or higher Wire harness between canister pump module and body ground B

    Result:

    B

    See step  40

    Result:

    A

    See step  16

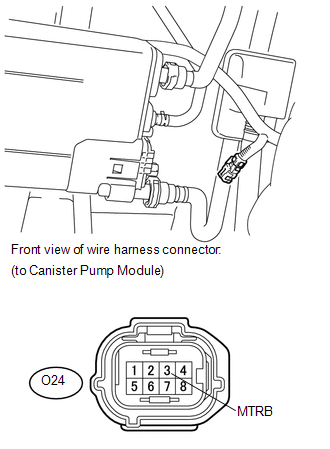

  16. CHECK HARNESS AND CONNECTOR (ECM - CANISTER PUMP MODULE)
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Disconnect the A27 ECM connector.
    4. Measure the resistance according to the value(s) in the table below.
      RESULT

      Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
      A27-49 (MPMP) - O24-3 (MTRB) Always Below 1 Ω ECM A
      Always 10 kΩ or higher Wire harness between ECM and canister pump module B

    Result:

    A

    See step  45

    Result:

    B

    See step  40

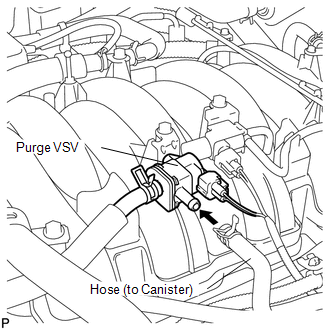

  17. PERFORM ACTIVE TEST USING TECHSTREAM (PURGE VSV)
    GTY593327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for EVAP Control.
    2. Disconnect the hose (connected to the canister) from the purge VSV.
    3. Start the engine.
    4. Using the Techstream, turn off the purge VSV (Activate the VSV for EVAP Control: OFF).
    5. Use your finger to confirm that the purge VSV has no suction.
    6. Using the Techstream, turn on the purge VSV (Activate the VSV for EVAP Control: ON).
    7. Use your finger to confirm that the purge VSV has suction.
      RESULT

      Test Result Suspected Trouble Area Proceed to
      No suction when purge VSV turned OFF, and suction applied when turned ON Blockage in the purge line is considered (based on result of step 9):
      • Problems with EVAP hose between canister and purge VSV
      • Canister (charcoal filter inside canister) clogged
      • ECM
      		 A
      Leakage is considered (based on result of step 10):
      • Fuel tank cap
      • Leakage from EVAP line, fuel tank, or canister assembly
      		 B
      Suction applied when purge VSV turned OFF Purge VSV stuck open C
      No suction when purge VSV turned ON
      • Purge VSV stuck closed
      • Problems with purge line between purge VSV and intake manifold
      		 D

    Result:

    B

    See step  20

    Result:

    C

    See step  21

    Result:

    D

    See step  23

    Result:

    A

    See step  18

  18. INSPECT EVAP HOSE (PURGE VSV - CANISTER ASSEMBLY)
    1. Check for blockages in the EVAP purge line between the purge VSV and canister.

      OK

      No blockages in the EVAP purge line between the purge VSV and canister assembly.

    Result:

    NG

    See step  44

    Result:

    OK

    See step  19

  19. INSPECT CANISTER ASSEMBLY (CHARCOAL FILTER INSIDE CANISTER)
    1. Check for filter blockage in the canister assembly (Refer to INSPECTION [08/2015 - 08/2018] ).

      OK

      No blockages in the canister assembly.

    Result:

    OK

    See step  47

    Result:

    NG

    See step  48

  20. CHECK FUEL TANK CAP ASSEMBLY
    1. Check that the fuel tank cap is correctly installed and confirm that the fuel tank cap meets OEM specifications.
    2. Tighten the fuel tank cap firmly (only one click sound could be heard).

      HINT:

      If an EVAP tester is available, check the fuel tank cap using the Techstream.

      1. Remove the fuel tank cap and install it onto a fuel tank cap adapter.
      2. Connect an EVAP tester pump hose to the adapter, and pressurize the cap to 3.2 to 3.7 kPa (gauge) [24 to 28 mmHg (gauge)] using an EVAP tester pump.
      3. Seal the adapter and wait for 2 minutes.
      4. Check the pressure. If the pressure is 2 kPa (gauge) [15 mmHg (gauge)] or more, the fuel tank cap is normal.
        RESULT

        Test Result Suspected Trouble Area Proceed to
        Fuel tank cap correctly installed - A
        Fuel tank cap loose
        • Fuel tank cap improperly installed
        • Defective fuel tank cap
        • Fuel tank cap does not meet OEM specifications
        		 B
        Defective fuel tank cap - B
        No fuel tank cap - C

    Result:

    A

    See step  37

    Result:

    B

    See step  35

    Result:

    C

    See step  36

  21. INSPECT PURGE VSV

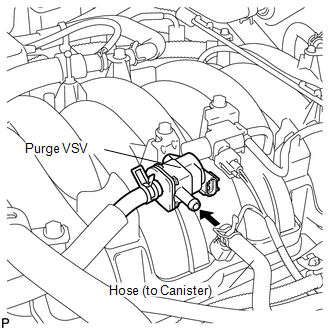

    GTY594499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the D16 purge VSV connector.
    3. Disconnect the hose (connected to the canister) from the purge VSV.
    4. Start the engine.
    5. Use your finger to confirm that the purge VSV has no suction.
      RESULT

      Test Result Suspected Trouble Area Proceed to
      No suction
      • Wire harness or connector between purge VSV and ECM (short to ground)
      • ECM
      		 A
      Suction applied Purge VSV B

    Result:

    A

    See step  26

    Result:

    B

    See step  39

  22. INSPECT EVAP HOSE (PURGE VSV - CANISTER)
    1. Check for blockages in the EVAP purge line between the purge VSV and canister.

      OK

      No blockages in the EVAP purge line between the purge VSV and canister.

    Result:

    NG

    See step  44

    Result:

    OK

    See step  23

  23. CHECK EVAP HOSE (PURGE VSV - INTAKE MANIFOLD)

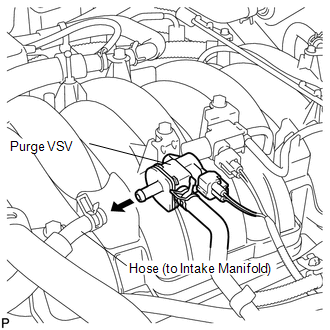

    GTY543139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the hose (connected to the intake manifold) from the purge VSV.
    2. Start the engine.
    3. Use your finger to confirm that the hose has suction.
      RESULT

      Test Result Suspected Trouble Area Proceed to
      Suction applied EVAP hose between purge VSV and intake manifold normal
      • Purge VSV
      • Purge VSV power source
      • ECM
      		 A
      No suction
      • Intake manifold port
      • EVAP hose between purge VSV and intake manifold
      		 B

    Result:

    B

    See step  34

    Result:

    A

    See step  24

  24. INSPECT PURGE VSV
    GTY602235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the purge VSV (Refer to REMOVAL [08/2015 - 08/2018] ).
    2. Apply the battery voltage to the terminals of the purge VSV.
    3. Using an air gun, confirm that air flows from port A to port B.
      RESULT

      Test Result Suspected Trouble Area Proceed to
      Air flows Purge VSV normal
      • Purge VSV power source
      • Wire harness or connector between purge VSV and ECM
      		 A
      No air flow Purge VSV B

    Result:

    B

    See step  39

    Result:

    A

    See step  25

  25. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF PURGE VSV)
    GTY587374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the D16 purge VSV connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.
      RESULT

      Tester Connection Switch Condition Specified Condition Suspected Trouble Area Proceed to
      D16-1 - Body ground Ignition switch ON 11 to 14 V Purge VSV power source normal
      • Wire harness or connector between purge VSV and ECM
      		 A
      Ignition switch ON Other than condition above Wire harness or connectors between purge VSV and battery B

    Result:

    B

    See step  40

    Result:

    A

    See step  26

  26. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)
    1. Disconnect the D56 ECM connector and the D16 purge VSV connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      D56-63 (PRG) - D16-2 Always Below 1 Ω
      D56-63 (PRG) or D16-2 - Body ground Always 10 kΩ or higher

    Result:

    OK

    See step  47

    Result:

    NG

    See step  40

  27. INSPECT CANISTER PUMP MODULE (POWER SOURCE FOR VENT VALVE)
    GTY564571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.
      RESULT

      Tester Connection Switch Condition Specified Condition Suspected Trouble Area Proceed to
      O24-5 (VLVB) - Body ground Ignition switch ON 11 to 14 V
      • Wire harness or connector between vent valve and ECM
      • Vent valve
      • Canister (charcoal filter inside canister) clogged
      • ECM
      		 A
      Ignition switch ON Below 3 V Power source wire harness of vent valve B

    Result:

    B

    See step  40

    Result:

    A

    See step  28

  28. INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)
    GTY543797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Apply the battery voltage to 5 (VLVB) and 1 (VGND) terminals of the canister pump module.
    4. Touch the canister pump module to confirm the vent valve operation.
      RESULT

      Test Result Suspected Trouble Area Proceed to
      Operating
      • Wire harness or connector between vent valve and ECM
      • Canister (charcoal filter inside canister) clogged
      • ECM
      		 A
      Not operating Vent valve B

    Result:

    B

    See step  38

    Result:

    A

    See step  29

  29. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
    1. Disconnect the A27 ECM connector.
    2. Disconnect the O24 canister pump module connector.
    3. Measure the resistance according to the value(s) in the table below.
      RESULT

      Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
      A27-30 (VPMP) - O24-1 (VGND) Always Below 1 Ω ECM A
      Always 10 kΩ or higher Wire harness between ECM and canister pump module B

    Result:

    B

    See step  40

    Result:

    A

    See step  30

  30. INSPECT CANISTER ASSEMBLY (CHARCOAL FILTER INSIDE CANISTER)
    1. Check for filter blockage in the canister assembly (Refer to INSPECTION [08/2015 - 08/2018] ).

      OK

      No blockages in the canister assembly.

    Result:

    OK

    See step  47

    Result:

    NG

    See step  48

  31. CHECK TERMINAL VOLTAGE (CANISTER PUMP MODULE)
    GTY610040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.
      RESULT

      Tester Connection Condition Test Result Suspected Trouble Area Proceed to
      O24-3 (MTRB) - Body ground Ignition switch ON 9 to 14 V
      • Wire harness or connector between leak detection pump and body ground
      • Leak detection pump
      		 A
      Below 3 V
      • Wire harness or connector between leak detection pump and ECM
      • ECM
      		 B

    Result:

    B

    See step  33

    Result:

    A

    See step  32

  32. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - BODY GROUND)
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Measure the resistance according to the value(s) in the table below.
      RESULT

      Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
      O24-4 (MGND) - Body ground Always Below 1 Ω Leak detection pump A
      Always 10 kΩ or higher Wire harness between canister pump module and body ground B

    Result:

    A

    See step  38

    Result:

    B

    See step  40

  33. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
    1. Turn the ignition switch off.
    2. Disconnect the O24 canister pump module connector.
    3. Disconnect the A27 ECM connector.
    4. Measure the resistance according to the value(s) in the table below.
      RESULT

      Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
      A27-49 (MPMP) - O24-3 (MTRB) Always Below 1 Ω ECM A
      Always 10 kΩ or higher Wire harness between ECM and canister pump module B

    Result:

    A

    See step  47

    Result:

    B

    See step  40

  34. INSPECT INTAKE MANIFOLD (EVAP PURGE PORT)
    1. Stop the engine.
    2. Disconnect the purge line from the intake manifold.
    3. Start the engine.
    4. Use your finger to confirm that the port of the intake manifold has suction.
      RESULT

      Test Result Suspected Trouble Area Proceed to
      Suction applied Purge line between intake manifold and purge VSV A
      No suction Intake manifold B
    5. Reconnect the purge line.

    Result:

    A

    See step  41

    Result:

    B

    See step  42

  35. CORRECTLY REINSTALL OR REPLACE FUEL TANK CAP ASSEMBLY

    HINT:

    • When reinstalling the fuel tank cap, tighten it firmly (only one click sound could be heard).
    • When replacing the fuel tank cap, use a fuel tank cap that meets OEM specifications, and tighten it firmly.

    Result:

    NEXT

    See step  49

  36. REPLACE FUEL TANK CAP ASSEMBLY

    HINT:

    When replacing the fuel tank cap, use a fuel tank cap that meets OEM specifications, and tighten it until a few click sounds are heard.

    Result:

    NEXT

    See step  49

  37. LOCATE EVAP LEAK PART

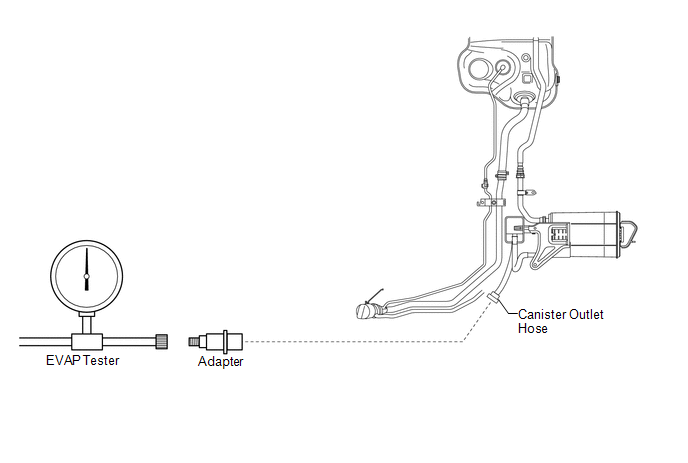

    GTY428803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the vent hose.
    2. Connect an EVAP tester to the canister pump module with the adapter.
    3. Pressurize the EVAP system to 3.2 to 3.7 kPa (24 to 28 mmHg).
    4. Apply soapy water to the piping and connecting parts of the EVAP system.
    5. Look for areas where bubbles appear. This indicates the leak point.
    6. Repair or replace the leak point.

      HINT:

      Disconnect the hose between the canister and the fuel tank from the canister. Block the canister side and conduct an inspection. In this way, the fuel tank can be excluded as an area suspected of causing fuel leaks.

    Result:

    NEXT

    See step  49

  38. REPLACE CANISTER PUMP MODULE
    1. Replace the canister pump module (Refer to REMOVAL [08/2015 - 08/2018] ).
      NOTE:
      • When replacing the canister pump module, check the canister pump module interior, canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose. If liquids are present in the canister interior, replace the canister and canister pump module together.

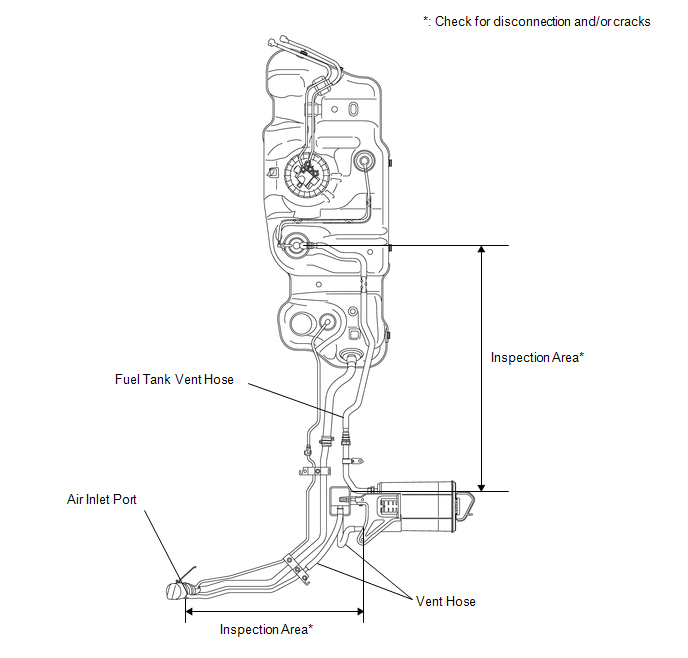

      • Check for filter blockage in the canister. If the charcoal filter inside the canister is clogged, replace the canister and canister pump module together.
      • Check for filter blockage in the canister filter. If the canister filter has blockages, replace the fuel tank inlet pipe sub-assembly.
      GTY589081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result:

    NEXT

    See step  49

  39. REPLACE PURGE VSV
    1. Replace the purge VSV (Refer to REMOVAL [08/2015 - 08/2018] ).

    Result:

    NEXT

    See step  49

  40. REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    NEXT

    See step  49

  41. REPLACE PURGE LINE (INTAKE MANIFOLD - PURGE VSV)

    Result:

    NEXT

    See step  49

  42. INSPECT INTAKE MANIFOLD (EVAP PURGE PORT)
    1. Check that the EVAP purge port of the intake manifold is not clogged. If necessary, replace the intake manifold.

    Result:

    NEXT

    See step  49

  43. REPAIR OR REPLACE PARTS AND COMPONENTS INDICATED BY OUTPUT DTCS
    1. Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.

    Result:

    NEXT

    See step  49

  44. REPAIR OR REPLACE EVAP HOSE

    Result:

    NEXT

    See step  49

  45. REPLACE CANISTER PUMP MODULE
    1. Replace the canister pump module (Refer to REMOVAL [08/2015 - 08/2018] ).
      NOTE:
      • When replacing the canister pump module, check the canister pump module interior, canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose. If liquids are present in the canister interior, replace the canister and canister pump module together.
      • Check for filter blockage in the canister. If the charcoal filter inside the canister is clogged, replace the canister and canister pump module together.
      • Check for filter blockage in the canister filter. If the canister filter has blockages, replace the fuel tank inlet pipe sub-assembly.
      GTY589081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result:

    NEXT

    See step  46

  46. PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of 6 steps performed automatically by the Techstream. It takes a maximum of approximately 18 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed. If the cut-off valve is closed, the fuel tank leak check is not possible.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Clear DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2018] ).
    5. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
    6. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine and ECT / Trouble Codes
      Result Proceed to
      EVAP system DTCs are output A
      No DTCs output B

    Result:

    B

    END

    Result:

    A

    See step  47

  47. REPLACE ECM
    1. Replace the ECM (Refer to REMOVAL [08/2015 - 08/2018] ).

    Result:

    NEXT

    See step  49

  48. REPLACE CANISTER ASSEMBLY
    1. Replace the canister assembly (Refer to REMOVAL [08/2015 - 08/2018] ).
      NOTE:
      • When replacing the canister pump module, check the canister pump module interior, canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose. If liquids are present in the canister interior, replace the canister and canister pump module together.
      • Check for filter blockage in the canister. If the charcoal filter inside the canister is clogged, replace the canister and canister pump module together.
      • Check for filter blockage in the canister filter. If the canister filter has blockages, replace the fuel tank inlet pipe sub-assembly.
      GTY589081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result:

    NEXT

    See step  49

  49. PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of 6 steps performed automatically by the Techstream. It takes a maximum of approximately 18 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed. If the cut-off valve is closed, the fuel tank leak check is not possible.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Clear DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2018] ).
    5. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
    6. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine and ECT / Trouble Codes

      HINT:

      If no pending DTCs are found, the repair has been successfully completed.

    Result:

    NEXT

    END

scientia non olet · About LEMON Manuals
