Drive Start Control System [08/2017 - 08/2018]: Description

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. The drive start control is controlled by the ECM.

    If the ECM determines that the shift lever and accelerator pedal are operated abnormally, driving torque is restricted and, when necessary, a warning is displayed on the combination meter assembly.

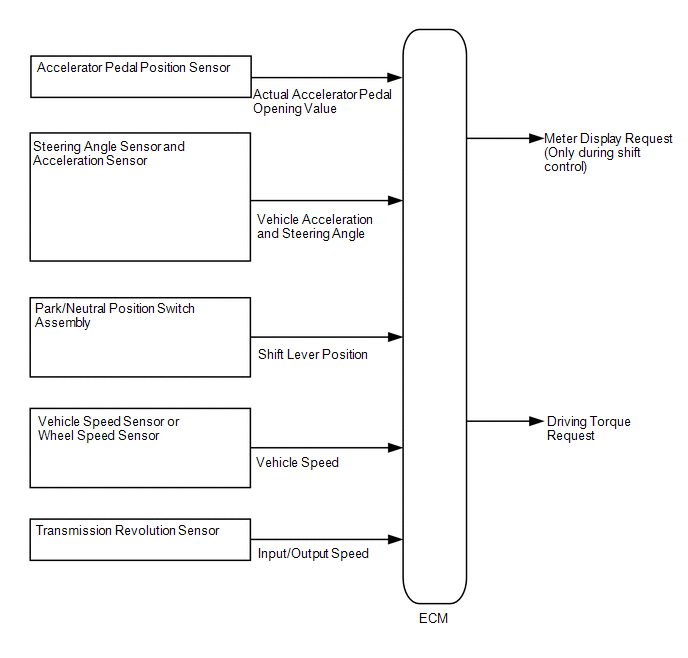

    Fig 1: Drive Start Control System [08/2017 - 08/2018]
    GTY766825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
