Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL PURGE VSV
    1. Install the purge VSV with the bolt.

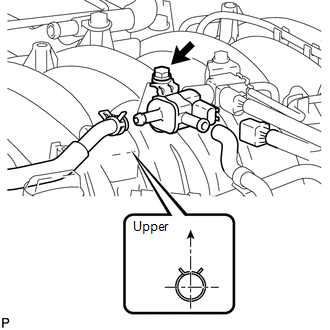

      GTY135800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    2. Connect the connector.
  2. CONNECT PURGE LINE HOSE
    1. Connect the 2 hoses.

      HINT:

      Turn the clip claw to the upper side.

  3. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16
