  1. INSPECT PURGE VSV

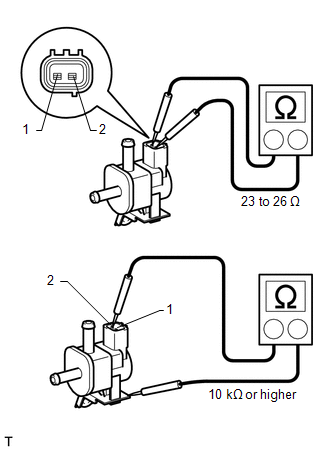

    GTY147471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 23 to 26 Ω
      1 - VSV body ground Always 10 kΩ or higher
      2 - VSV body ground 10 kΩ or higher

      If the result is not as specified, replace the purge VSV.

    2. Inspect the purge VSV operation.
      GTY147472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check that air does not flow from ports.
      2. Apply battery voltage across the terminals.
        GTY103045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Check that air flows from ports.

        If operation is not as specified, replace the purge VSV.
