Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [08/2015 - 08/2018] )

  2. REMOVE NO. 2 CYLINDER HEAD COVER

    See step  9

  3. REMOVE PCV VALVE HOSE

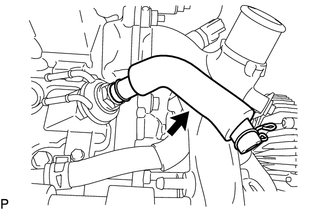

    1. GTY577663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Slide the clamp and remove the PCV valve hose.

  4. REMOVE PCV VALVE SUB-ASSEMBLY

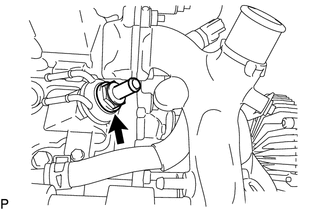

    1. GTY577695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the PCV valve sub-assembly.
