Installation [08/2015 - 08/2018]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL PCV VALVE SUB-ASSEMBLY

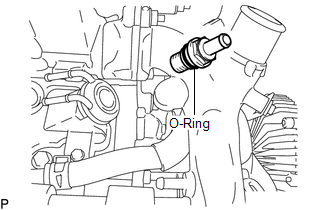

- Apply a light coat of engine oil to the O-ring, and install it to the PCV valve sub-assembly.
HINT:
- When reusing the PCV valve sub-assembly, inspect the O-ring.
- If the O-ring has scratches or cuts, replace the PCV valve sub-assembly.
- Install the PCV valve sub-assembly to the separator case.
Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)
- Apply a light coat of engine oil to the O-ring, and install it to the PCV valve sub-assembly.
- INSTALL PCV VALVE HOSE
- Install the PCV valve hose, and slide the clamp to secure the hose to the PCV valve sub-assembly.
- INSTALL NO. 2 CYLINDER HEAD COVER
See step 14
- INSTALL INTAKE MANIFOLD
(Refer to INSTALLATION [08/2015 - 08/2018] )
