Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEPARATE FRONT FENDER LINER RH
    1. Remove the 8 clips, separate the fender liner.
      GTY550601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SEPARATE FRONT FENDER APRON SEAL RH
    1. Using a clip remover, separate the 2 clips and fold back the fender apron seal.

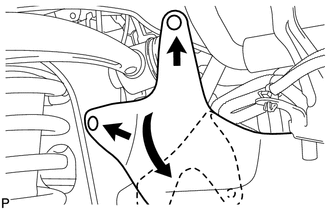

      GTY562173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 AIR INJECTION SYSTEM HOSE
    1. Engine Room Side:

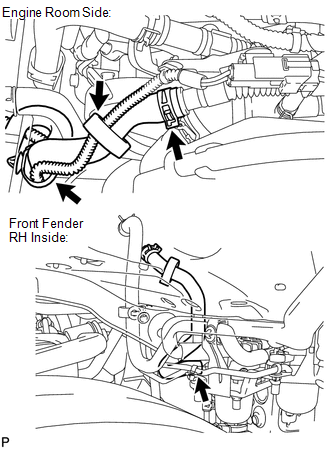

      GTY606703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 clamps.
      2. Disconnect the No. 2 air injection system hose.
      3. Using a clip remover, remove the clamp from the body panel.
    2. Front Fender RH Inside:
      1. Disconnect the clamp.
      2. Disconnect the No. 2 air injection system hose from the air pump.
  4. REMOVE NO. 3 AIR INJECTION SYSTEM HOSE
    1. Engine Room Side:

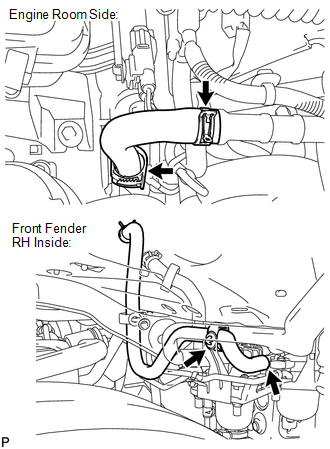

      GTY573382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the clamp and No. 3 air injection system hose.
      2. Using a clip remover, remove the clamp from the body panel.
    2. Front Fender RH Inside:
      1. Disconnect the No. 3 air injection system hose from the air pump.
      2. Using a clip remover, remove the clamp from the body panel.
  5. REMOVE AIR PUMP ASSEMBLY WITH BRACKET
    1. Disconnect the 2 air pump connectors and detach the 3 wire harness claws.
      GTY550602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, 2 nuts and air pump.

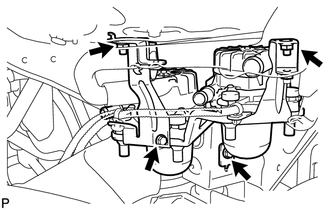

      GTY147699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AIR PUMP INLET
    1. Remove the 2 bolts, slide the 2 clips off of the No. 1 air injection system hoses, disconnect the hoses and remove the air pump inlet.

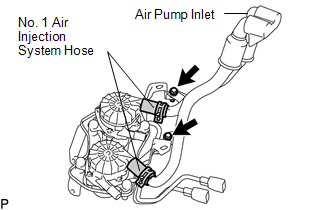

      GTY597273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 1 AIR INJECTION SYSTEM HOSE
    1. Disconnect the 2 No. 1 air injection system hoses.
  8. REMOVE AIR PUMP ASSEMBLY
    1. Using a clip remover, detach the 2 clamps and remove the 2 air pump assemblies from the bracket.
      GTY562171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 6 air pump insulators.
