Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR PUMP ASSEMBLY
    1. Connect the 6 air pump insulators to the 2 air pump assemblies and install the 2 air pump assemblies to the bracket.

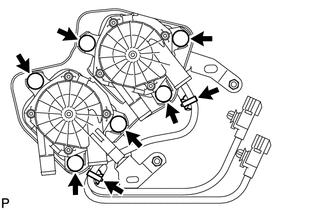

      GTY562171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 wire harness clamps to the bracket.
  2. CONNECT NO. 1 AIR INJECTION SYSTEM HOSE
    1. Connect the 2 No. 1 air injection system hoses to the air pump.

      HINT:

      Insert the hoses until the hose ends are aligned with the stoppers.

      GTY574823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR PUMP INLET
    1. Connect the air pump inlet to the No. 1 air injection system hoses to install it, and then slide the 2 clips onto the hoses.

      HINT:

      Insert the inlet until the inlet stoppers are aligned with the hose ends.

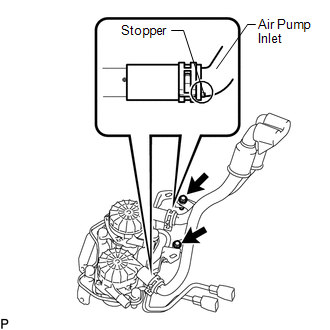

      GTY539713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  4. INSTALL AIR PUMP ASSEMBLY WITH BRACKET
    1. Install the air pump to the vehicle.

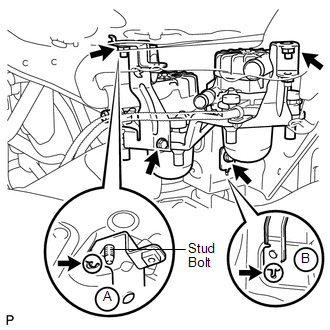

      GTY557544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert the bracket tab into the slot and insert the stud bolt into the bracket hole as shown in illustration A. Then slide the bracket.
      2. Insert the bracket tab into the slot shown in illustration B.
      3. Install the 2 bolts and 2 nuts.

        for bolt

        Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

        for nut

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

    2. Connect the 2 air pump connectors and attach the 3 wire harness claws.

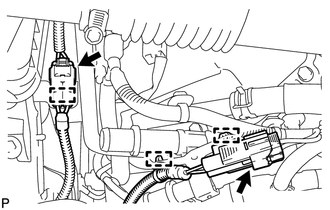

      GTY550602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 3 AIR INJECTION SYSTEM HOSE
    1. Connect the No. 3 air injection system hose so that its paint mark aligns with the air pump's rib as shown in the illustration below labeled A.
    2. Connect the clamp to the No. 3 air injection system hose shown in the illustration below labeled B. Then insert the clamp's clip into the body hole.

      HINT:

      Align the paint mark of the No. 3 air injection system hose with the edge of the clamp.

    3. Connect the No. 3 air injection system hose to the air tube shown in the illustration below labeled C.

      HINT:

      • Make sure that the paint mark of the No. 3 air injection system hose is facing upward.
      • Make sure that the direction of the hose clamp is as shown in the illustration.
    4. Connect the clamp to the No. 3 air injection system hose and wire harness shown in the illustration below labeled D. Then insert the clamp's clip into the body hole.

      HINT:

      Align the paint mark of the No. 3 air injection system hose and paint mark of the wire harness with the edge of the clamp.

  6. INSTALL NO. 2 AIR INJECTION SYSTEM HOSE

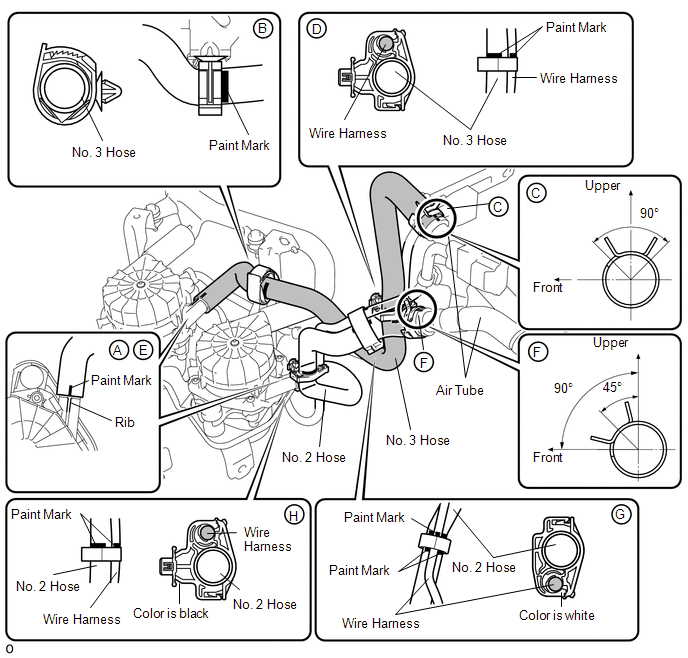

    GTY946516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the No. 2 air injection system hose so that its paint mark aligns with the air pump's rib as shown in the illustration below labeled E.
    2. Connect the No. 2 air injection system hose to the air tube shown in the illustration below labeled F.

      HINT:

      • Make sure that the paint mark of the No. 2 air injection system hose is facing upward.
      • Make sure that the direction of the hose clamp is as shown in the illustration.
    3. Connect the white colored clamp to the No. 2 air injection system hose and wire harness shown in the illustration below labeled G.

      HINT:

      • Make sure that the paint mark of the No. 2 air injection system hose is facing upward.
      • Make sure that the direction of the hose clamp is as shown in the illustration.
    4. Connect the black colored clamp to the No. 2 air injection system hose and wire harness shown in the illustration below labeled H. Then insert the clamp's clip into the body hole.
  7. INSTALL FRONT FENDER APRON SEAL RH
    1. Install the fender apron seal with the 2 clips.

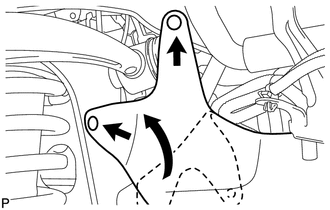

      GTY586580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT FENDER LINER RH
    1. Install the fender liner with the 8 clips.

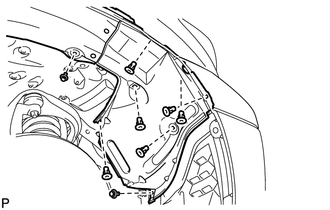

      GTY550601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
