Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR INJECTION CONTROL DRIVER (for Bank 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the air injection control driver with the 2 screws.
  Torque: 2.0 N.m (20 kgf/cm, 18 in.lbf)
INSTALL AIR INJECTION CONTROL DRIVER (for Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the air injection control driver with the 2 screws.
  Torque: 2.0 N.m (20 kgf/cm, 18 in.lbf)
2. Install the 2 bolts.
  Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

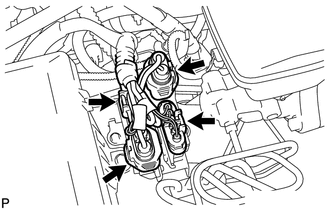

INSTALL AIR INJECTION CONTROL DRIVER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

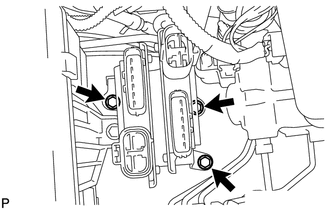

Install the air injection control driver with the 3 bolts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

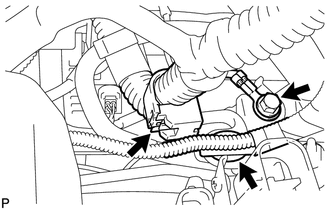

Connect the 2 wire harness clamps.

Install the ground cable with the bolt.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

Connect the 4 air injection control driver connectors.
