Installation [08/2015 - ]: Procedure

  1. INSTALL SPARK PLUG

    HINT:

    Perform "Inspection After Repairs" after replacing the spark plug (Refer to).

    Refer to

    INITIALIZATION [08/2015 - 08/2019]

    INITIALIZATION [08/2019 - ]

    1. Using a 16 mm plug wrench, install the 8 spark plugs.

      Torque: 21 N.m (214 kgf/cm, 16 ft.lbf)

  2. INSTALL IGNITION COIL ASSEMBLY

    HINT:

    Perform "Inspection After Repairs" after replacing the ignition coil (Refer to).

    Refer to

    INITIALIZATION [08/2015 - 08/2019]

    INITIALIZATION [08/2019 - ]

    1. Install the 8 ignition coils with the 8 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the 8 ignition coil connectors.

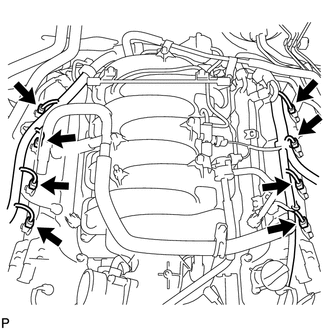

      GTY547907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 13

  4. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16
