Removal [08/2015 - ]: Procedure

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

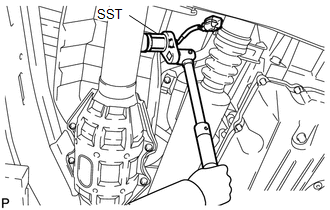

    GTY601911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the heated oxygen sensor connector.
    2. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010
  2. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

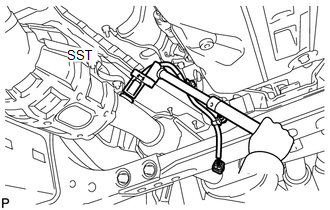

    GTY582421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the heated oxygen sensor connector and 2 clamps.
    2. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010
