Installation [08/2015 - ]: Procedure

  1. INSTALL ENGINE REAR OIL SEAL
    1. Apply MP grease to the lip of a new oil seal.
    2. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.

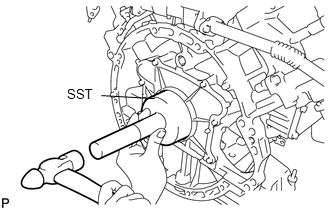

      GTY225836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09223-56010
      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap on the oil seal at an angle.
  2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    See step  5

  3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD)
    1. Install the automatic transmission assembly (Refer to INSTALLATION [08/2015 - ] ).
  4. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 4WD)
    1. Install the automatic transmission assembly (Refer to INSTALLATION [08/2015 - ] ).
