Installation [08/2015 - ]: Procedure

  1. INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
    1. Apply MP grease to the lip of a new oil seal.
    2. Using SST and a hammer, tap in the oil seal to a depth between 0 to 1.0 mm (0 to 0.0394 in.) from the timing chain cover edge.
      GTY551052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09223-22010
      • SST: 09506-35010
      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap the oil seal at an angle.
  2. INSTALL CRANKSHAFT TIMING GEAR KEY
    1. Install the crankshaft timing gear key.
      GTY587387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

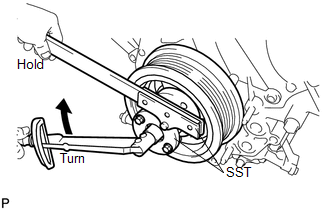

  3. INSTALL CRANKSHAFT PULLEY
    1. Align the pulley set key with the key groove of the pulley, and slide on the pulley.
    2. Using SST, install the pulley set bolt.
      GTY384465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
      • SST: 09330-00021

      Torque: 300 N.m (3059 kgf/cm, 221 ft.lbf)

  4. INSTALL FRONT STABILIZER BAR
    1. Install the stabilizer bar and 2 stabilizer bushes and 2 stabilizer brackets with the 4 bolts.
      GTY611118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 69 N.m (704 kgf/cm, 51 ft.lbf)

  5. INSTALL RADIATOR ASSEMBLY
    1. Install the radiator assembly (Refer to INSTALLATION [08/2015 - ] ).
  6. INSPECT FOR OIL LEAK
