Removal [08/2015 - ]: Procedure

  1. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE POWER OUTLET SOCKET ASSEMBLY

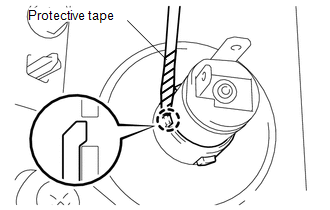

    1. Using a screwdriver with its tip wrapped in protective tape, engage the claw and remove the power outlet socket assembly.
      GTY602902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE POWER OUTLET SOCKET COVER NO. 2

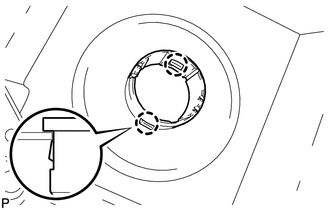

    1. Engage the 2 claws and remove the power outlet socket cover.
      GTY247317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
