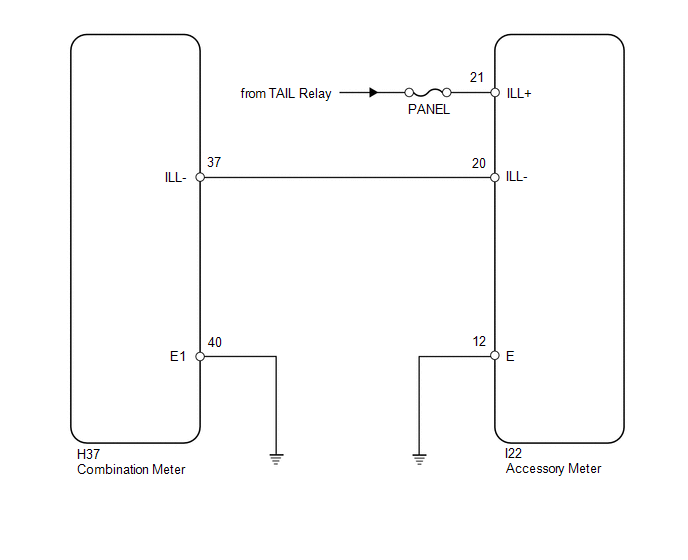

Meter Illumination is Always Dark [08/2015 - 08/2017]: Wiring Diagram

GTY546905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
