Meter Illumination is Always Dark [08/2015 - 08/2017]: Procedure

1. Check the illumination function.
   RESULT



   Result	Proceed to
   Accessory meter illumination is always dark	A
   Combination meter illumination is always dark	B

Result:

B

GO TO PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2017] )

Result:

A

See step  2

1. Remove the PANEL fuse from the main body ECU.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   PANEL fuse	Always	Below 1 Ω

Result:

NG

CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

Result:

OK

See step  3

1. Disconnect the I22 accessory meter connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   I22-21 (ILL+) - Body ground	Light control switch ON	11 to 14 V

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

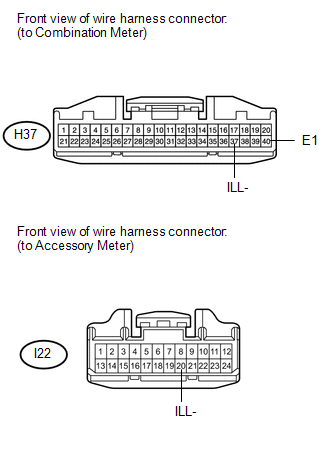

1. Disconnect the H37 combination meter connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the I22 accessory meter connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H37-37 (ILL-) - I22-20 (ILL-)	Always	Below 1 Ω
   H37-37 (ILL-) - Body ground	Always	10 kΩ or higher
   H37-40 (E1) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Temporarily replace the accessory meter with a new or normally functioning one (Refer to REMOVAL [08/2015 - 08/2017] ).

Result:

NEXT

See step  6

1. Check the accessory meter operation.

   OK

   Operation of the accessory meter returns to normal.

Result:

OK

END (ACCESSORY METER IS DEFECTIVE)

Result:

NG

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2017] )
