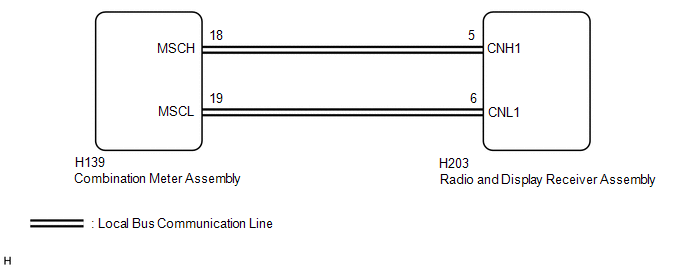

DTC B150A: Lost Communication with HMI-LAN [08/2019 - ]: Wiring Diagram

GTY882086

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
