DTC B150A: Lost Communication with HMI-LAN [08/2017 - 08/2019]: Wiring Diagram

w/ Navigation System:

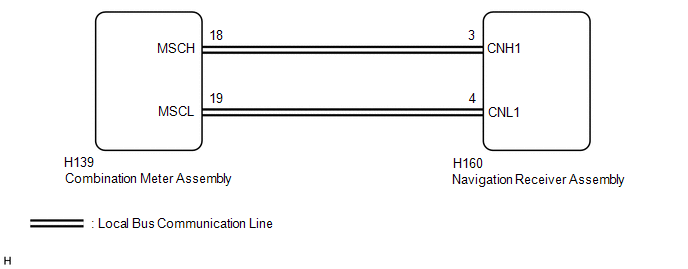

GTY753755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Navigation System:

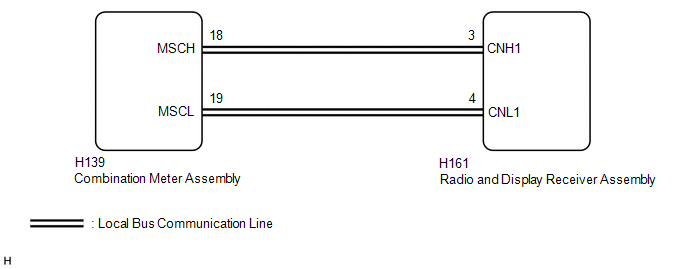

GTY753745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
