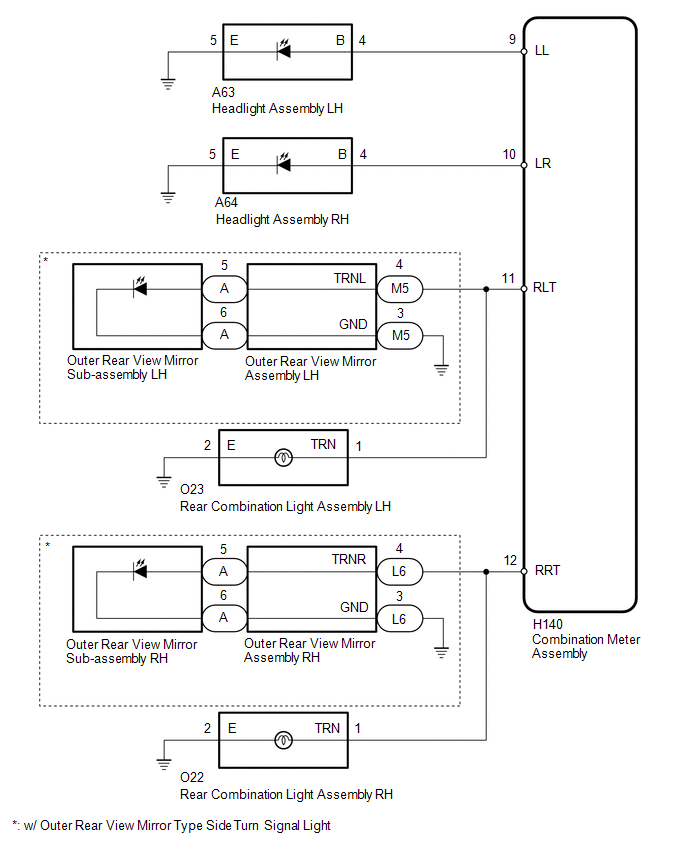

DTC B1507: Open in Turn Signal Circuit [08/2017 - ]: Wiring Diagram

GTY752766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
