DTC B1500: Fuel Sender Open Detected [08/2015 - 08/2017]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream ON.
4. Enter the following menus: Body Electrical / Combination Meter / Data List.
5. According to the display on the Techstream, read the Data List.
   COMBINATION METER



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Input	Fuel sender gauge (main) input signal/Min.: 0, Max.: 127.5	Fuel sender input value	Unit: L

   OK

   Fuel value displayed on the Techstream is almost same as needle indication.

Result:

OK

USE SIMULATION METHOD TO CHECK

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2017] )

Result:

NG

See step  2

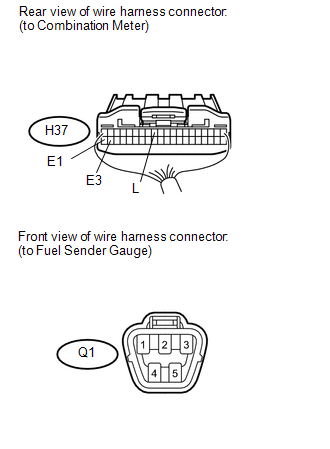

1. Disconnect the H37 meter connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the Q1 gauge connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H37-12 (L) - Q1-2	Always	Below 1 Ω
   H37-39 (E3) - Q1-3	Always	Below 1 Ω
   H37-40 (E1) - Body ground	Always	Below 1 Ω
   H37-12 (L) or Q1-2 - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Remove the fuel sender gauge.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • for 3UR-FE (Refer to REMOVAL [08/2015 - ] ).
   • for 3UR-FBE (Refer to REMOVAL [08/2015 - 08/2018] ).
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2 - 3	Float level is F (upper)	12 to 18 Ω
   	Float level is E (lower)	405 to 415 Ω

   RESULT



   Result	Proceed to
   Result is as specified	A
   Result is not as specified (for 3UR-FE)	B
   Result is not as specified (for 3UR-FBE)	C

Result:

A

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2017] )

Result:

B

REPLACE FUEL SENDER GAUGE ASSEMBLY

(Refer to REMOVAL [08/2015 - ] )

Result:

C

REPLACE FUEL SENDER GAUGE ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2018] )
