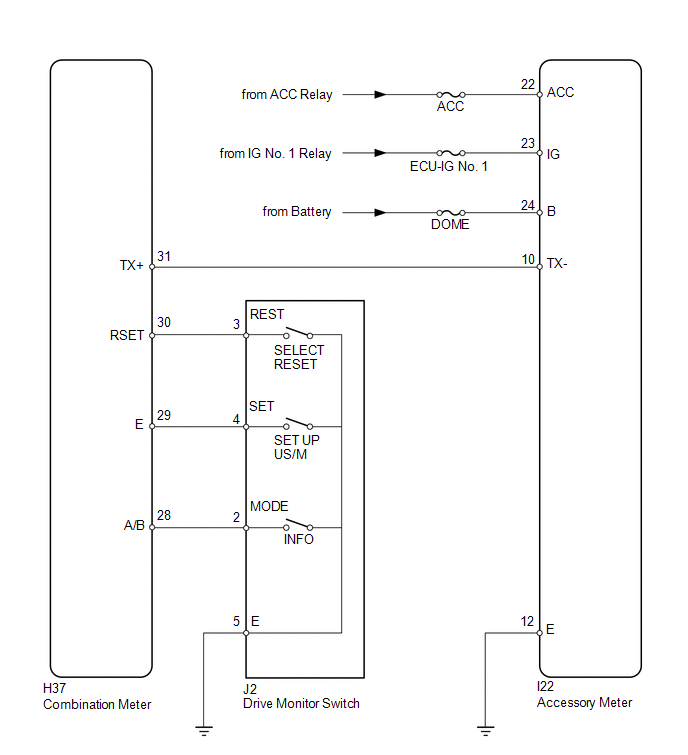

Accessory Meter does not Illuminate [08/2015 - 08/2017]: Wiring Diagram

GTY609219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
