Installation [08/2015 - 08/2017]: Procedure

1. Install a new brake master cylinder seal onto the brake master cylinder.

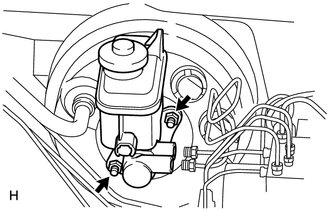

2. Install the brake master cylinder with 2 new nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

1. Using a union nut wrench, connect the brake tube (labeled A) to the brake master cylinder.

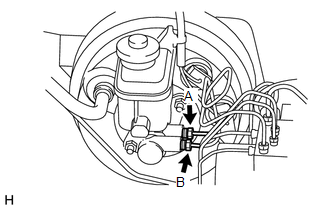

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 20 N.m (199 kgf/cm, 14 ft.lbf)

   NOTE:

   Use the formula to calculate special torque vales for situations where a union nut wrench is combined with a torque wrench (Refer to PRECAUTION [08/2015 - 08/2017] ).

1. Using a union nut wrench, connect the brake tube (labeled B) to the brake master cylinder.

   Torque: 20 N.m (199 kgf/cm, 14 ft.lbf)

   NOTE:

   Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench (Refer to PRECAUTION [08/2015 - 08/2017] ).

1. Connect the brake fluid level warning switch connector.

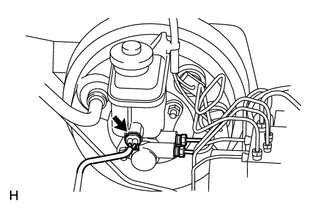

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  2
