Components [08/2015 - 08/2017]

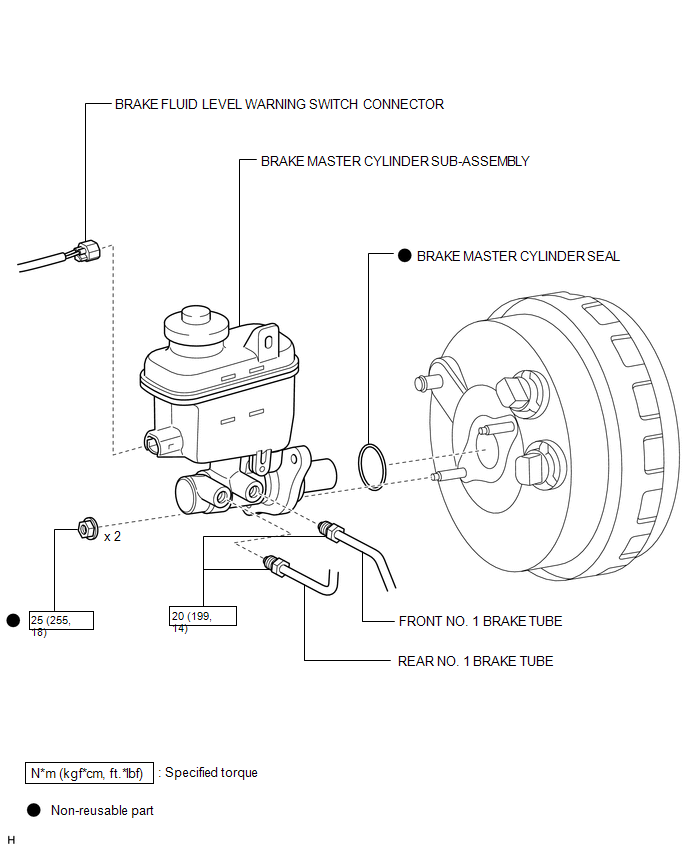

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications [08/2015 - 08/2017] (1 Of 2)
GTY602624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

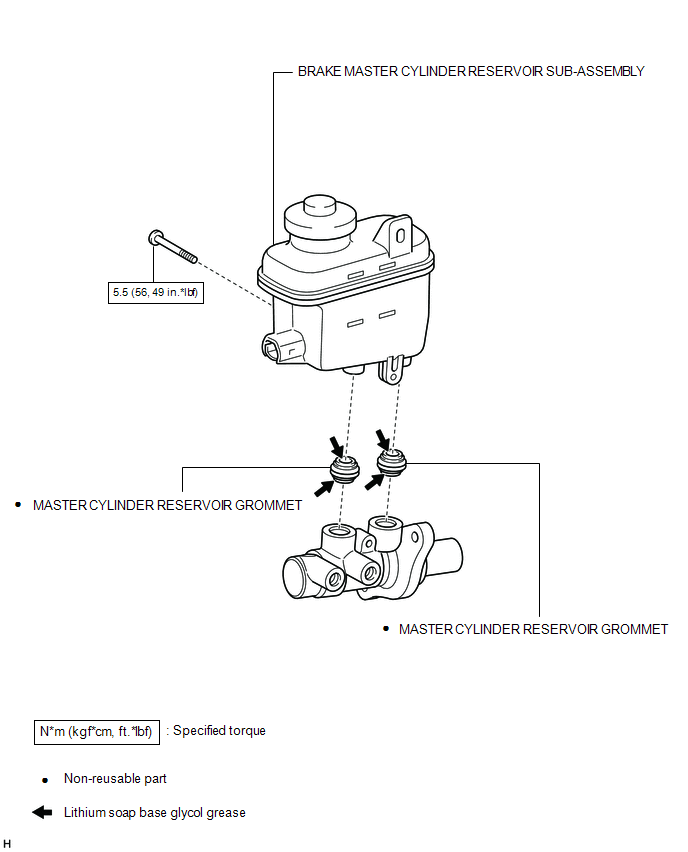

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications [08/2015 - 08/2017] (2 Of 2)
GTY607554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
