Removal [08/2015 - ]: Procedure

  1. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Remove the integration control and panel assembly (Refer to REMOVAL [08/2015 - 08/2017] , or refer to REMOVAL [08/2017 - 08/2019] , or refer to REMOVAL [08/2019 - ] ).
  2. REMOVE SEAT HEATER SWITCH (w/ Climate Control Seat System)

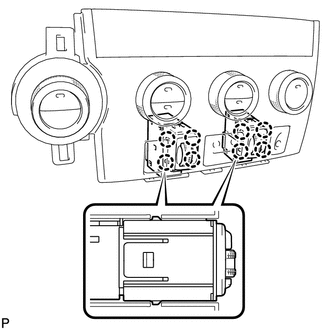

    1. Disengage the 4 claws and remove the seat heater switch.
      GTY611253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SEAT HEATER SWITCH (w/o Climate Control Seat System)

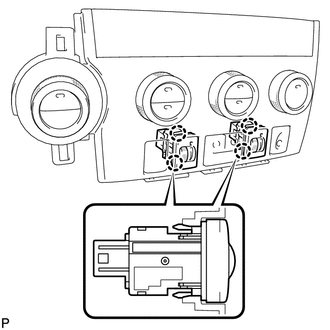

    1. Disengage the 2 claws and remove the seat heater switch.
      GTY611495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
