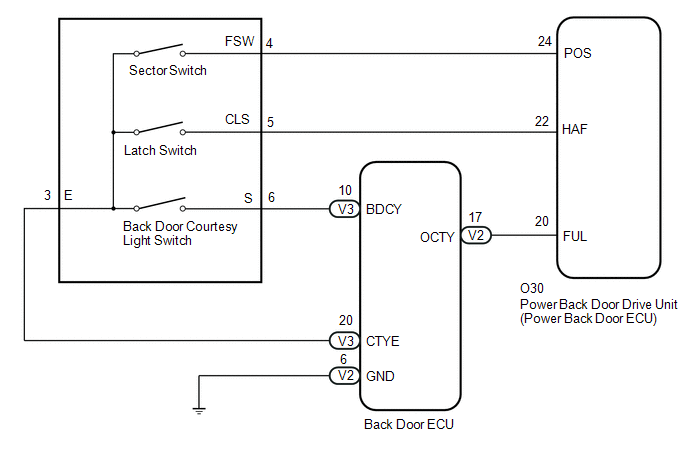

DTC B2251: Back Door Closer Switch Malfunction [08/2019 - ]: Wiring Diagram

GTY605314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
