DTC B2251: Back Door Closer Switch Malfunction [08/2015 - 08/2019]: Procedure
- READ VALUE USING TECHSTREAM (HALF LATCH SW)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Back Door / Data List /
- According to the display on the Techstream, read the Data List.BACK DOOR (POWER BACK DOOR ECU)
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Half Latch SW Latch switch signal / ON or OFF ON: Back door lock motor is open-latch or over-latch
OFF: Back door lock motor is full-latch or half-latch- OK
The display is as specified in the normal condition.
Result:
NG
See step 10
Result:
OK
See step 2
- READ VALUE USING TECHSTREAM (BACK DOOR COURTESY LIGHT SWITCH)
- Connect the Techstream to the DLC3.
- Turn the engine switch to ON.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Back Door / Data List /
- According to the display on the Techstream, read the Data List.BACK DOOR (POWER BACK DOOR ECU)
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Courtesy SW Back door courtesy light switch signal / ON or OFF ON: Back door is open
OFF: Back door is closed- OK
The display is as specified in the normal condition.
Result:
OK
REPLACE POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU)
(Refer to REMOVAL [08/2015 - ] )
Result:
NG
See step 3

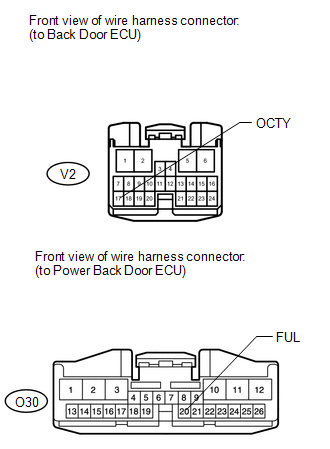

- CHECK HARNESS AND CONNECTOR (BACK DOOR ECU - POWER BACK DOOR ECU)
- Disconnect the V2 back door ECU connector.
- Disconnect the O30 power back door ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition V2-17 (OCTY) - O30-20 (FUL) Always Below 1 Ω V2-17 (OCTY) or O30-20 (FUL) - Body ground Always 10 kΩ or higher - Reconnect the back door ECU connector.
- Reconnect the power back door ECU connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- Disconnect the V2 back door ECU connector.
- READ VALUE USING BACK DOOR ECU (BACK DOOR COURTESY LIGHT SWITCH)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Back Door P/W / Data List /
- According to the display on the Techstream, read the Data List.BACK DOOR P/W (BACK DOOR ECU)
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Back Door Courtesy SW Back door courtesy light switch signal / ON or OFF ON: Back door is open
OFF: Back door is closed- OK
The display is as specified in the normal condition.
Result:
OK
REPLACE BACK DOOR ECU
(Refer to DISASSEMBLY [08/2015 - 08/2019] )
Result:
NG
See step 5
- INSPECT BACK DOOR LOCK (BACK DOOR COURTESY LIGHT SWITCH)
- Remove the back door lock (Refer to REMOVAL [08/2015 - ] ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Door Lock Latch Position Specified Condition 6 (S) - 3 (E) Open-latch Below 1 Ω 6 (S) - 3 (E) Half-latch Below 1 Ω 6 (S) - 3 (E) Full-latch 10 kΩ or higher 6 (S) - 3 (E) Over-latch 10 kΩ or higher
Result:
NG
REPLACE BACK DOOR LOCK
(Refer to REMOVAL [08/2015 - ] )
Result:
OK
See step 6

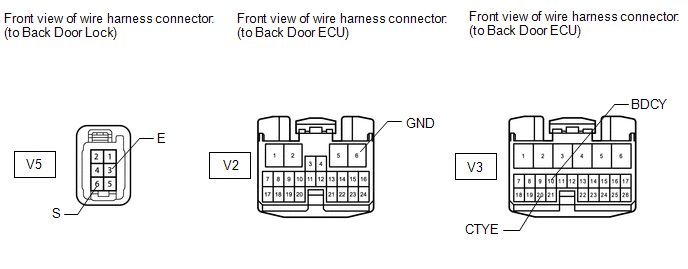

- CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK - BACK DOOR ECU AND BODY GROUND)
- Disconnect the V5 door lock connector.
- Disconnect the V2 and V3 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition V5-6 (S) - V3-10 (BDCY) Always Below 1 Ω V5-3 (E) - V3-20 (CTYE) Always Below 1 Ω V2-6 (GND) - Body ground Always Below 1 Ω V5-6 (S) or V3-10 (BDCY) - Body ground Always 10 kΩ or higher - Reconnect the door lock and ECU connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- Disconnect the V5 door lock connector.
- REPLACE POWER BACK DOOR DRIVE UNIT
- Temporarily replace the power back door drive unit with a new or normally functioning one (Refer to REMOVAL [08/2015 - ] ).
Result:
NEXT
See step 8
- CLEAR DTC
- Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).
Result:
NEXT
See step 9
- CHECK DTC OUTPUT
- Check the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019]
).
OK
DTC not output B2251.
Result:
OK
END (POWER BACK DOOR DRIVE UNIT DEFECTIVE)
Result:
NG
REPLACE BACK DOOR ECU
(Refer to DISASSEMBLY [08/2015 - 08/2019] )
- Check the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019]
).

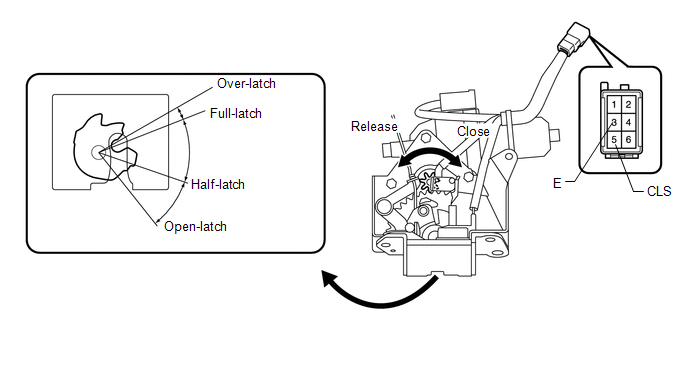

- INSPECT BACK DOOR LOCK (LATCH SWITCH)
- Remove the back door lock (Refer to REMOVAL [08/2015 - ] ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Latch Switch
Tester Connection Door Lock Latch Position Specified Condition 5 (CLS) - 3 (E) Open-latch Below 1 Ω 5 (CLS) - 3 (E) Half-latch 10 kΩ or higher 5 (CLS) - 3 (E) Full-latch 10 kΩ or higher 5 (CLS) - 3 (E) Over-latch Below 1 Ω
Result:
NG
REPLACE BACK DOOR LOCK
(Refer to REMOVAL [08/2015 - ] )
Result:
OK
See step 11

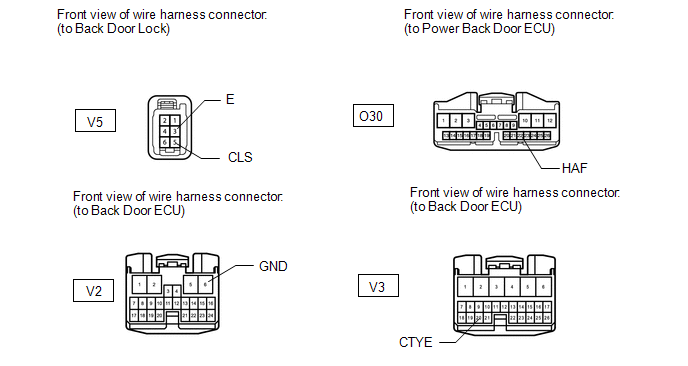

- CHECK HARNESS AND CONNECTOR
- Disconnect the V5 door lock connector.
- Disconnect the O30, V2 and V3 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition V5-3 (E) - V3-20 (CTYE) Always Below 1 Ω V5-5 (CLS) - O30-22 (HAF) Always Below 1 Ω V2-6 (GND) - Body ground Always Below 1 Ω V5-5 (CLS) or O30-22 (HAF) - Body ground Always 10 kΩ or higher - Reconnect the door lock and ECU connector.
Result:
OK
REPLACE POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU)
(Refer to REMOVAL [08/2015 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Disconnect the V5 door lock connector.
