DTC B2250: Back Door Closer Operation Malfunction [08/2015 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the back door lock (Refer to REMOVAL [08/2015 - ] ).

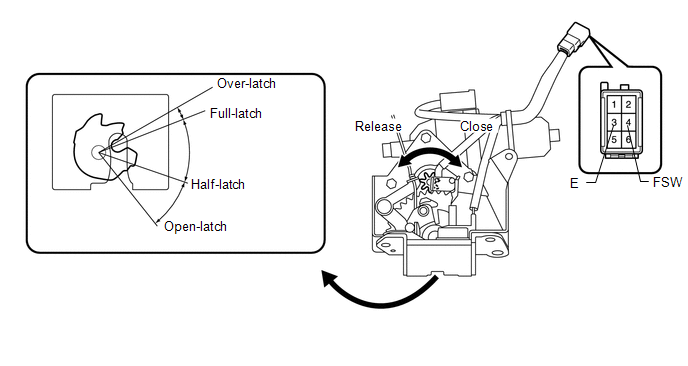

2. Measure the resistance of the switch.

   Standard Resistance

   Tester Connection	Door Lock Latch Position	Specified Condition
   4 (FSW) - 3(E)	Open-latch	Below 1 Ω
   4 (FSW) - 3(E)	Over-latch	10 kΩ or higher
   4 (FSW) - 3(E)	Full-latch	10 kΩ or higher
   4 (FSW) - 3(E)	Half-latch	Below 1 Ω

3. Reinstall the back door lock.

Result:

NG

REPLACE BACK DOOR LOCK

(Refer to REMOVAL [08/2015 - ] )

Result:

OK

See step  2

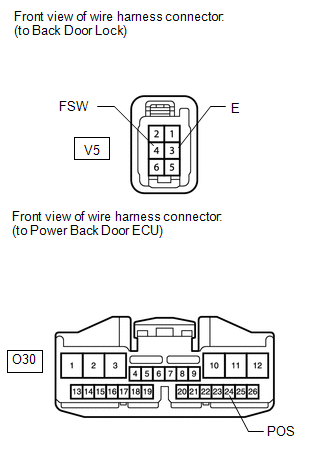

1. Disconnect the V5 door lock connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the O30 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   V5-4 (FSW) - O30-24 (POS)	Always	Below 1 Ω
   V5-3 (E) - Body ground	Always	Below 1 Ω
   V5-4 (FSW) - Body ground	Always	10 kΩ or higher

4. Reconnect the door lock and ECU connector.

Result:

OK

REPLACE POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU)

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
