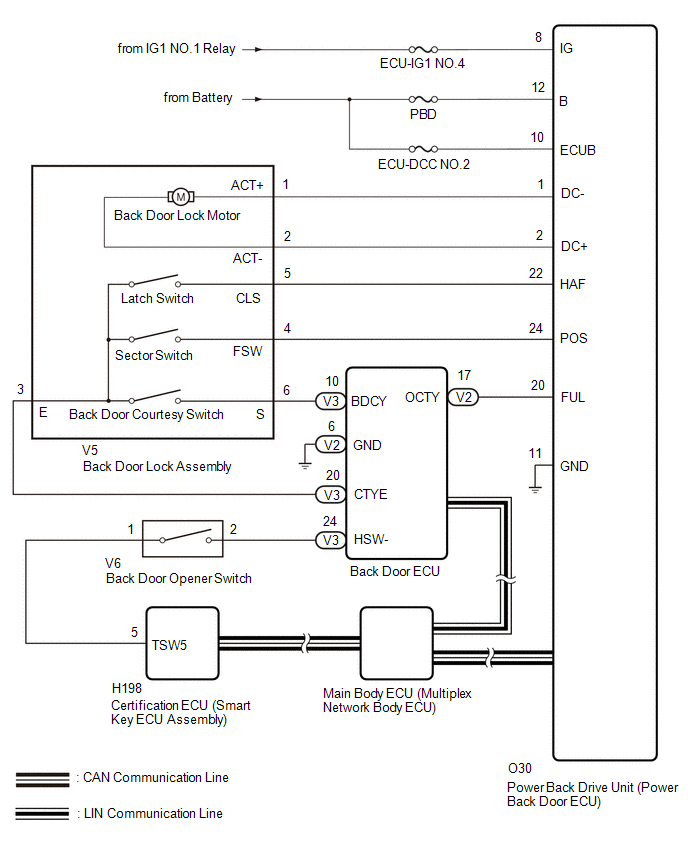

Back Door cannot be Opened [08/2019 - ]: Wiring Diagram

GTY878984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
