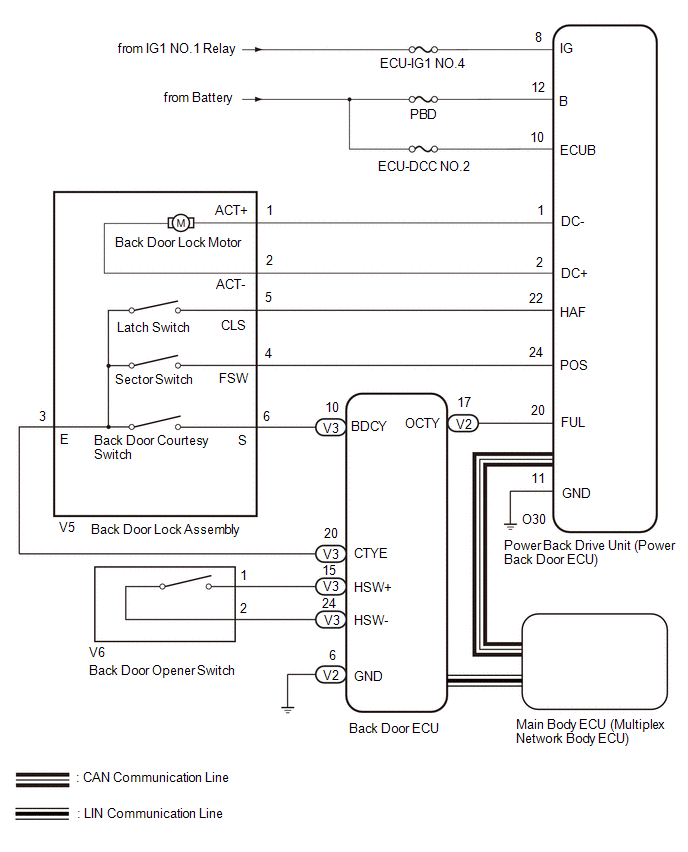

Back Door cannot be Opened [08/2017 - 08/2019]: Wiring Diagram

GTY766589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
