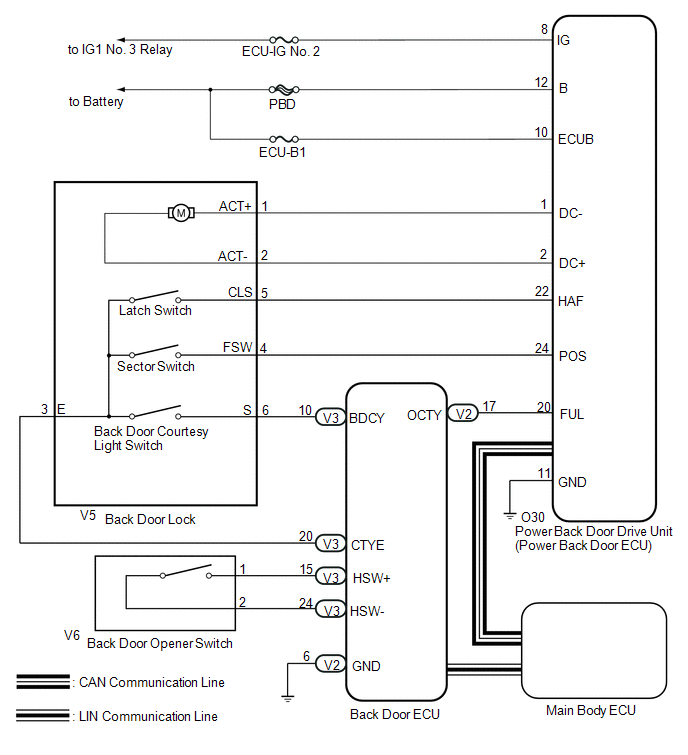

Back Door cannot be Opened [08/2015 - 08/2017]: Wiring Diagram

GTY583452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
