Removal [08/2015 - ]: Procedure

  1. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Remove the integration control and panel assembly (Refer to REMOVAL [08/2015 - 08/2017] , or refer to REMOVAL [08/2017 - 08/2019] , or refer to REMOVAL [08/2019 - ] ).
  2. REMOVE GLASS BREAKAGE SENSOR MICROPHONE

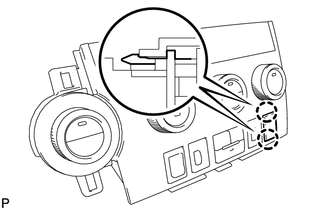

    GTY590022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws and remove the glass breakage sensor microphone.
