Removal [08/2015 - ]: Procedure

1. Remove the nut and remove the wiper arm and blade assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for both sides.

1. Disengage the claw and remove the front fender to cowl side seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for both sides.

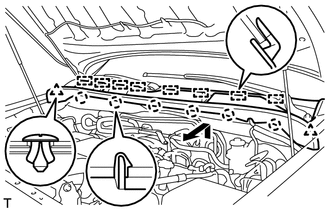

1. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 6 claws and 8 guides and remove the cowl top ventilator louver sub-assembly.

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

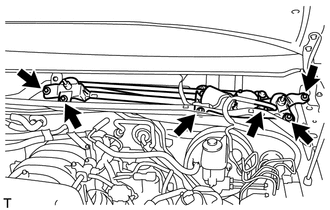

2. Remove the nut.
3. Remove the 4 bolts and wiper motor and link assembly.

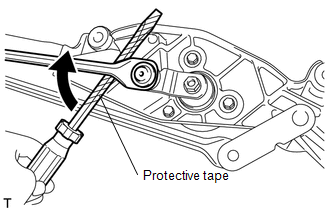

1. Using a screwdriver with its tip wrapped in protective tape, disconnect the rod of the wiper link assembly from the crank arm pivot of the front wiper motor, as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Put matchmarks on the crank arm and front wiper motor, as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

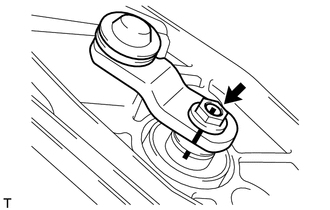

3. Remove the nut and remove the crank arm.

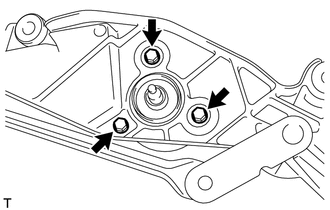

4. Remove the 3 bolts and remove the windshield wiper motor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
