Components [08/2015 - ]

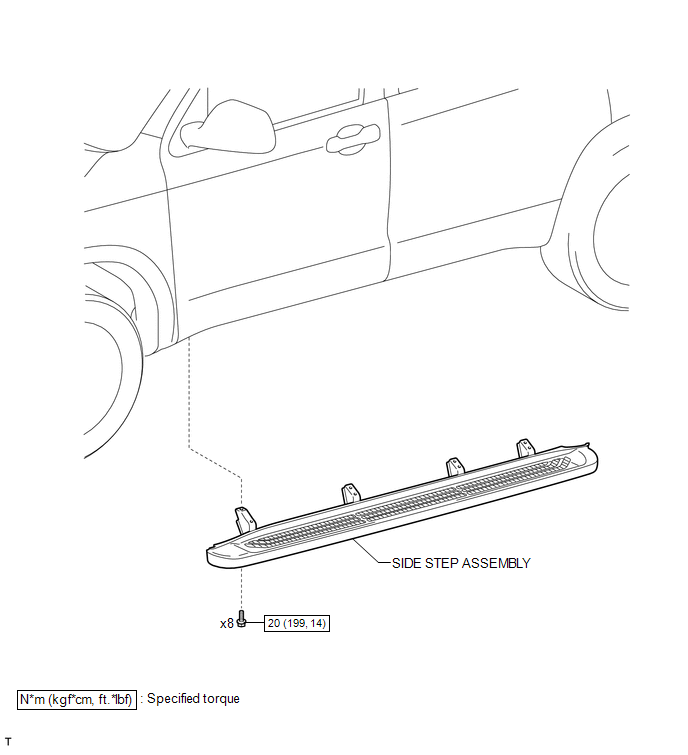

Fig 1: Side Step Replacement Components With Torque Specifications (1 Of 2)
GTY558933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

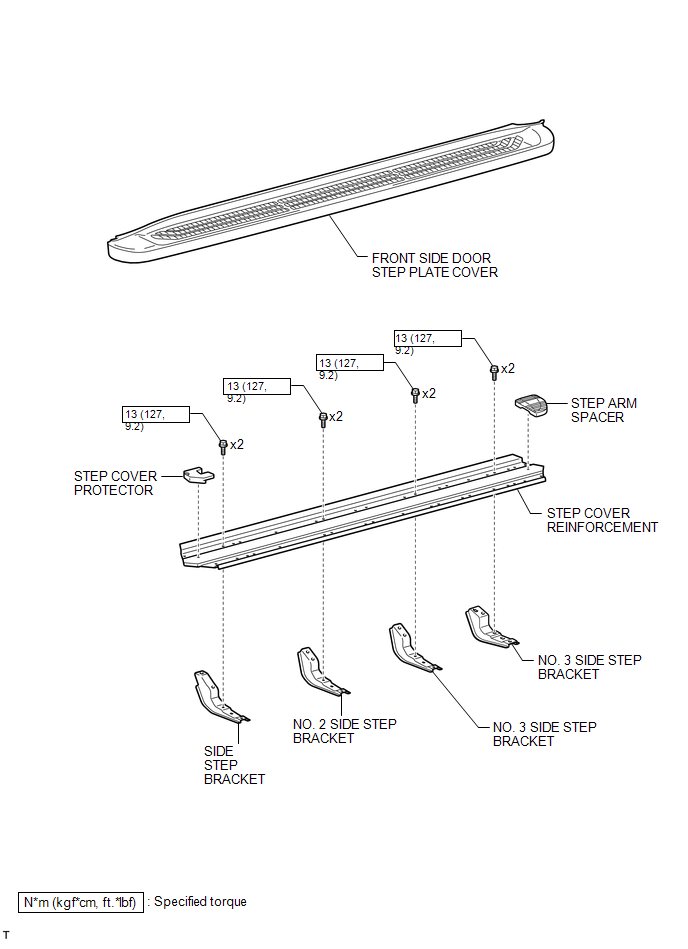

Fig 2: Side Step Replacement Components With Torque Specifications (2 Of 2)
GTY606547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
