Components [08/2015 - 08/2017]

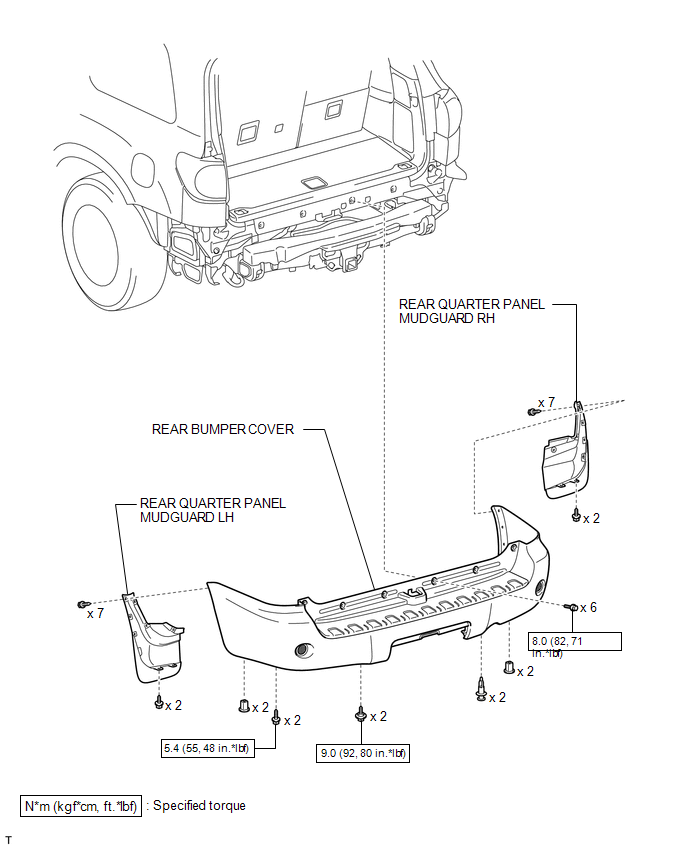

Fig 1: Rear Bumper Replacement Components With Torque Specifications [08/2015 - 08/2017] (1 Of 3)
GTY575725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

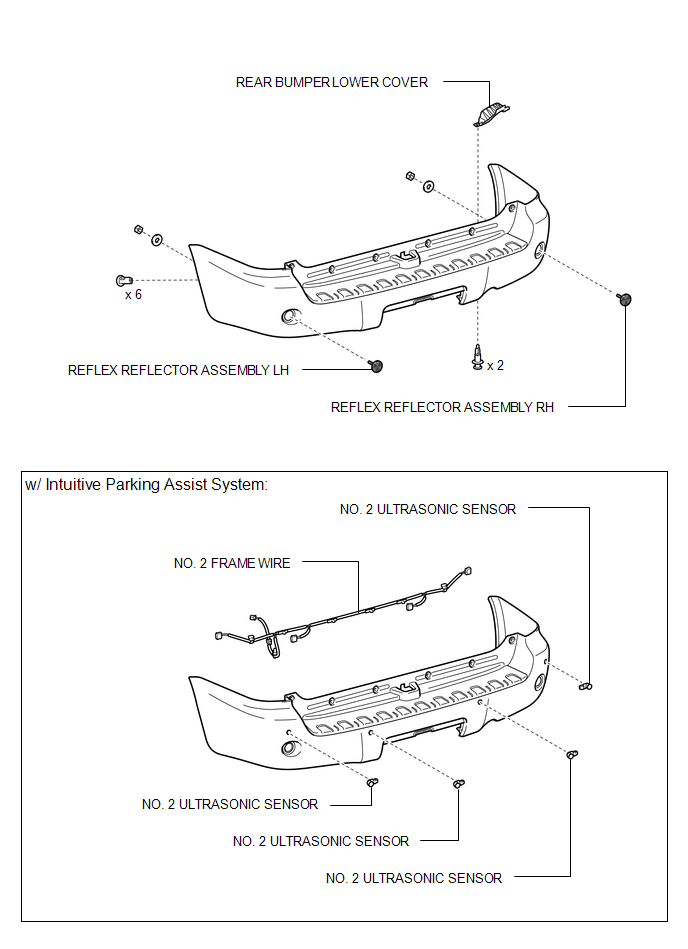

Fig 2: Rear Bumper Replacement Components [08/2015 - 08/2017] (2 Of 3)
GTY474484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

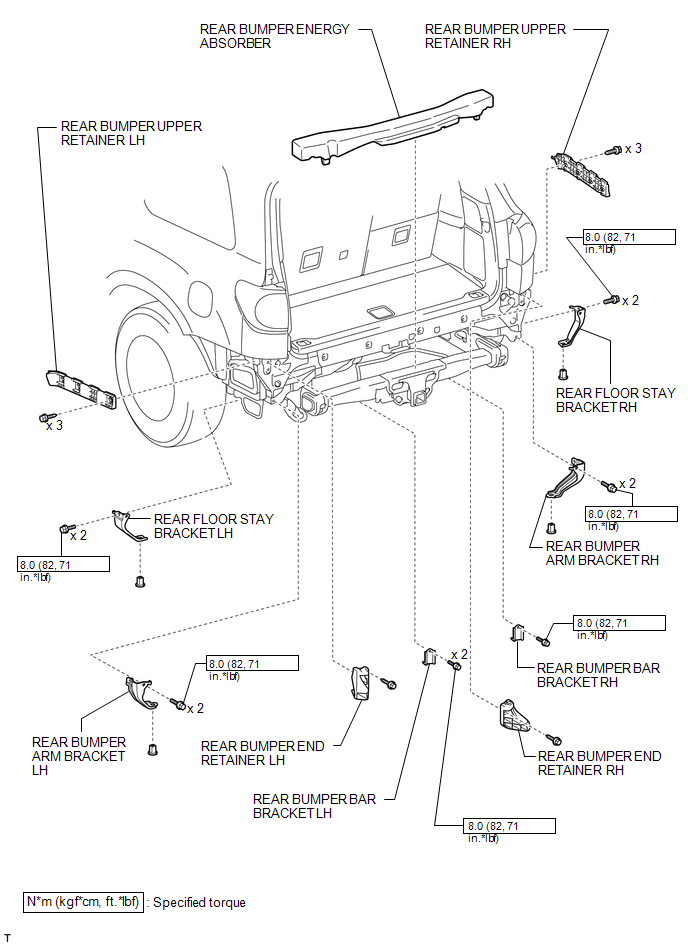

Fig 3: Rear Bumper Replacement Components With Torque Specifications [08/2015 - 08/2017] (3 Of 3)
GTY584556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
