Exterior Panels / Trim (Service Information)
>>
Mudguard
>>
Components [08/2015 - ]
Components [08/2015 - ]

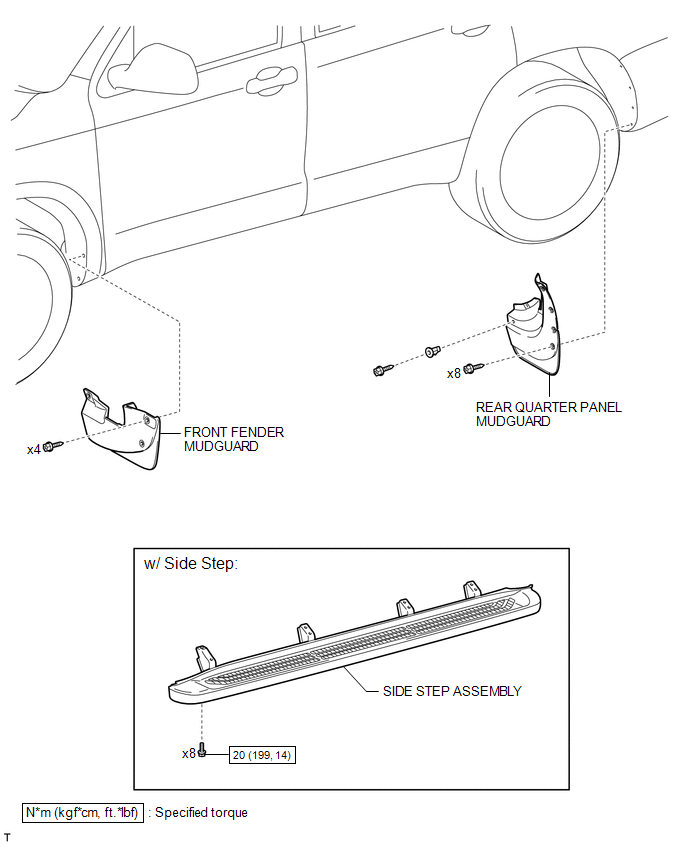

Fig 1: Mudguard Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
