Components [08/2017 - ]

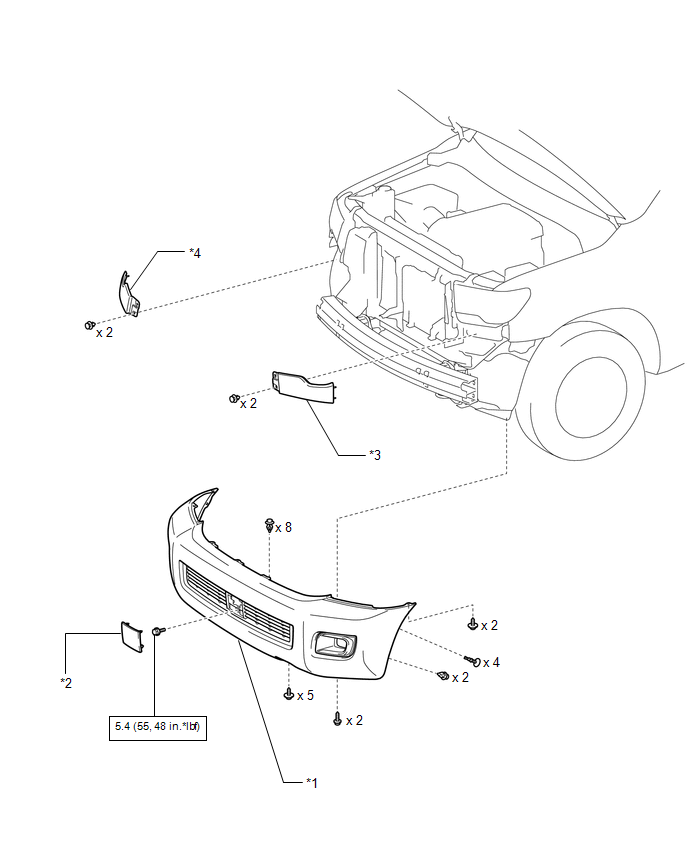

Fig 1: Front Bumper Replacement Components With Torque Specifications [08/2017 - ] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER COVER	*2	FRONT BUMPER LOWER COVER
*3	FRONT END PANEL LH	*4	FRONT END PANEL RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

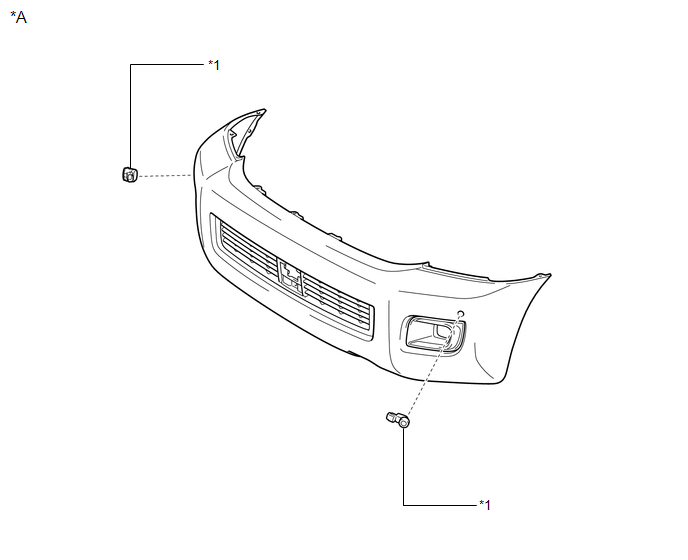

Fig 2: Front Bumper Replacement Components [08/2017 - ] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System	-	-
*1	NO. 1 ULTRASONIC SENSOR	-	-

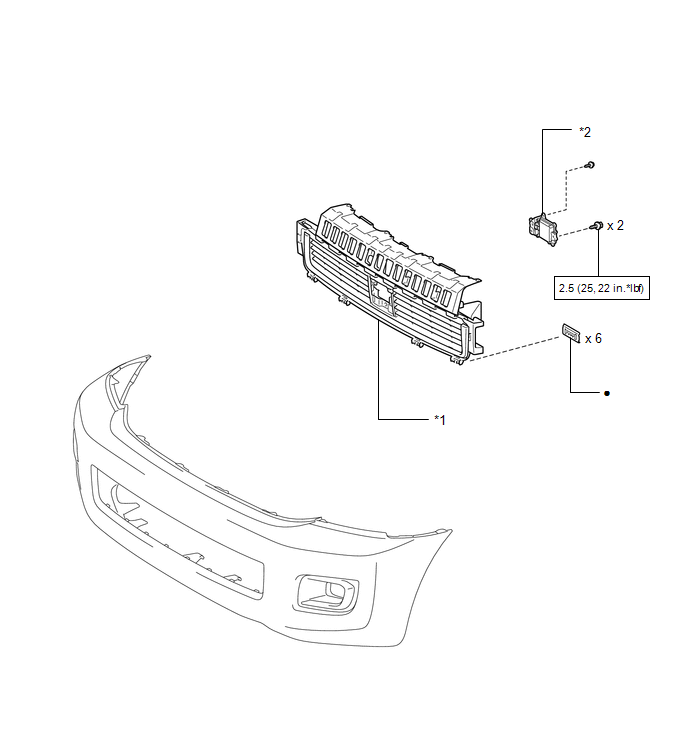

Fig 3: Front Bumper Replacement Components With Torque Specifications [08/2017 - ] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER GARNISH	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

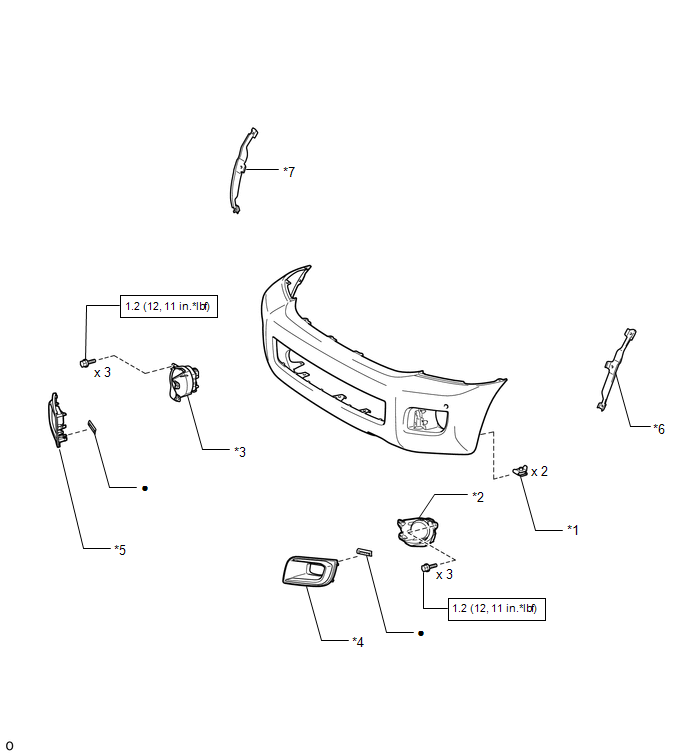

Fig 4: Front Bumper Replacement Components With Torque Specifications [08/2017 - ] (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CLIP	*2	FOG LIGHT ASSEMBLY LH
*3	FOG LIGHT ASSEMBLY RH	*4	FOG LIGHT COVER LH
*5	FOG LIGHT COVER RH	*6	FRONT FENDER LINER BRACKET LH
*7	FRONT FENDER LINER BRACKET RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

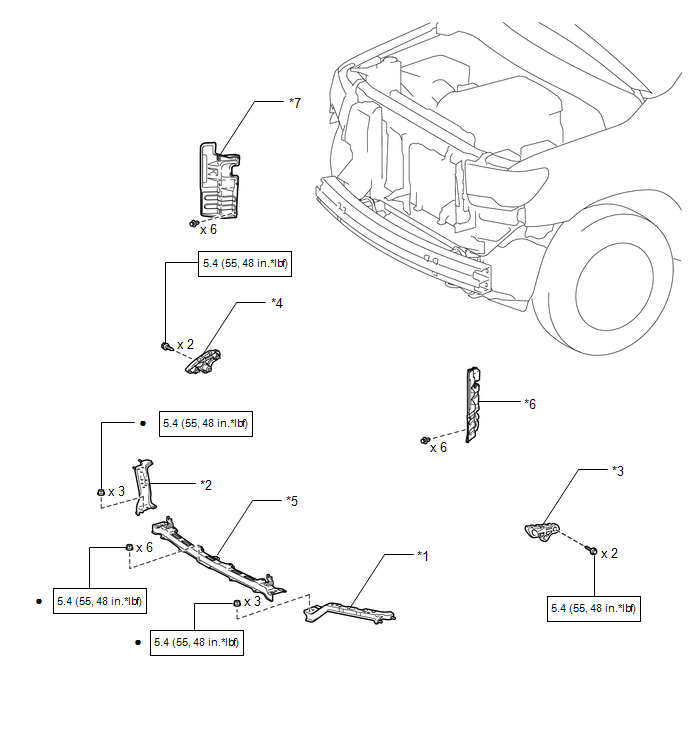

Fig 5: Front Bumper Replacement Components With Torque Specifications [08/2017 - ] (5 Of 6)

Callout	Description	Callout	Description
*1	FRONT BUMPER END RETAINER LH	*2	FRONT BUMPER END RETAINER RH
*3	FRONT BUMPER SIDE SUPPORT LH	*4	FRONT BUMPER SIDE SUPPORT RH
*5	FRONT UPPER CENTER BUMPER RETAINER	*6	RADIATOR SIDE DEFLECTOR LH
*7	RADIATOR SIDE DEFLECTOR RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

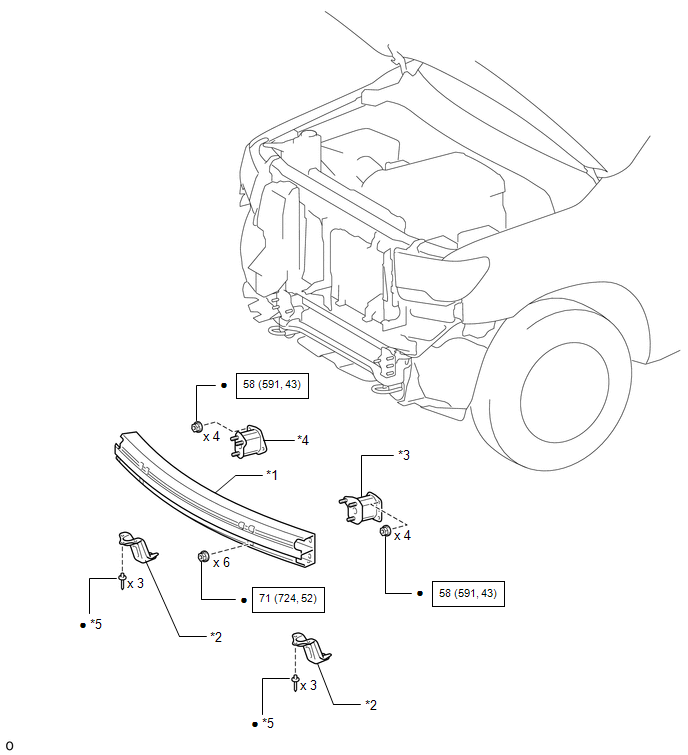

Fig 6: Front Bumper Replacement Components With Torque Specifications [08/2017 - ] (6 Of 6)

Callout	Description	Callout	Description
*1	FRONT BUMPER REINFORCEMENT	*2	FRONT BUMPER SIDE BRACKET
*3	FRONT NO. 2 BUMPER EXTENSION SUB-ASSEMBLY LH	*4	FRONT NO. 2 BUMPER EXTENSION SUB-ASSEMBLY RH
*5	RIVET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
